D10040230P1 - Hybrid Power Doubler amplifier module

PREMIER DEVICES

📥 Download Datasheet

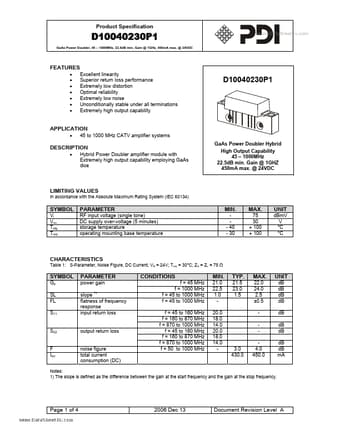

D10040230P1 Datasheet Preview — Preview of D10040230P1 PDF

Datasheet Details

Part number	D10040230P1
Manufacturer	PREMIER DEVICES
File Size	155.65 KB
Description	Hybrid Power Doubler amplifier module
Datasheet	D10040230P1_PREMIERDEVICES.pdf

D10040230P1 Product details

Description

Hybrid Power Doubler amplifier module with Extremely high output capability employing GaAs dice LIMITING VALUES In accordance with the Absolute Maximum Rating System (IEC 60134) SYMBOL Vi Vov Tstg Tmb PARAMETER RF input voltage (single tone) DC supply over-voltage (5 minutes) storage temperature operating mounting base temperature MIN.- 40 - 30 MAX.75 30 + 100 + 100 UNIT dBmV V °C °C CHARACTERISTICS Table 1: S-Parameter, Noise Figure, DC Current; VB = 24V; Tmb = 30°C; ZS = ZL

Features

Excellent linearity Superior return loss performance Extremely low distortion Optimal reliability Extremely low noise Unconditionally stable under all terminations Extremely high output capability D10040230P1.
