PM48-2064K - 10/100Base-T Dual port Magnetics

📥 Download Datasheet

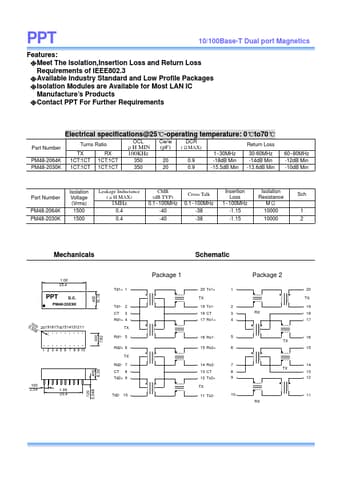

PM48-2064K Datasheet Preview — Preview of PM48-2064K PDF

Datasheet Details

Part number	PM48-2064K
Manufacturer	PPT
File Size	29.08 KB
Description	10/100Base-T Dual port Magnetics
Datasheet	PM48-2064K-PPT.pdf

PM48-2064K Product details

Features

Meet The Isolation,Insertion Loss and Return Loss Requirements of IEEE802.3 Available Industry Standard and Low Profile Packages Isolation Modules are Available for Most LAN IC Manufacture’s Products Contact PPT For Further Requirements Electrical specifications@25 Part Number PM48-2064K PM48-2030K Turns Ratio TX 1CT:1CT 1CT:1CT RX 1CT:1CT 1CT:1CT OCL -operating temperature: 0 Cw/w to70 60~80MHz -12dB Min -10dB Min H MIN 100KHz 350 350 (pF) 20 20 DCR ( MAX) 0.9 0.9 1~30MHz -18dB Min -.
