CD411299 Dual Diode

Powerex Dual Diode Modules are designed for use in applications requiring rectification and isolated packaging. The modules are isolated for easy mounting with other components on a common heatsink. POW-R-BLOK™ has been tested and recognized by the Underwriters Laboratories (QQQX2 Power Semiconduct.

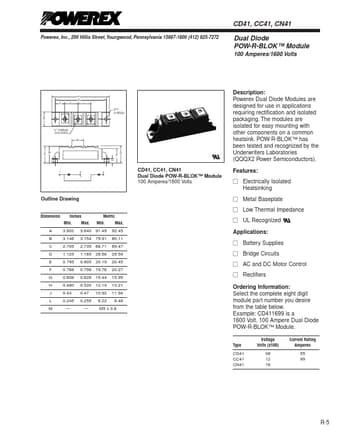

Powerex, Inc., 200 Hillis Street, Youngwood, Pennsylvania 15697-1800 (412) 925-7272 CD41, CC41, CN41 Dual Diode POW-R-BLOK™ Module 100 Amperes/1600 Volts 1 2 3 A C F G H B "U" THREAD (3 PLACES) R M D 1 2 ~ + Ø"T" (2 REQD) Q P N 3 - Outline Drawing Dimension Inches Metric Min. Max. Min. Max. A 3.602 3.640 91.49 92.45 B 3.146 3.154 79.91 80.11 C 2.705 2.735 68.71 69.47 D 1.125 1.165 28.58 29.59 E 0.795 0.805 20.19 20.45 F 0.788 0.798 19.76 20.27 G 0.608 0.628 15.44 15.95 H .

CD411299 Features

* Ⅺ Electrically Isolated Heatsinking Ⅺ Metal Baseplate Ⅺ Low Thermal Impedance Ⅺ UL Recognized Applications: Ⅺ Battery Supplies Ⅺ Bridge Circuits Ⅺ AC and DC Motor Control Ⅺ Rectifiers Ordering Information: Select the complete eight digit module part number you desire from the table below. Example:
