MM3Z6V2W - Silicon Planar Zener Diodes

Product Overview

Part number	MM3Z6V2W
Manufacturer	PJ
File Size	624.16 KB
Description	Silicon Planar Zener Diodes
Datasheet	MM3Z6V2W Datasheet
Note	This datasheet PDF includes multiple part numbers: MM3Z6V2W, MM3Z2V0W. Please refer to the document for exact specifications by model.

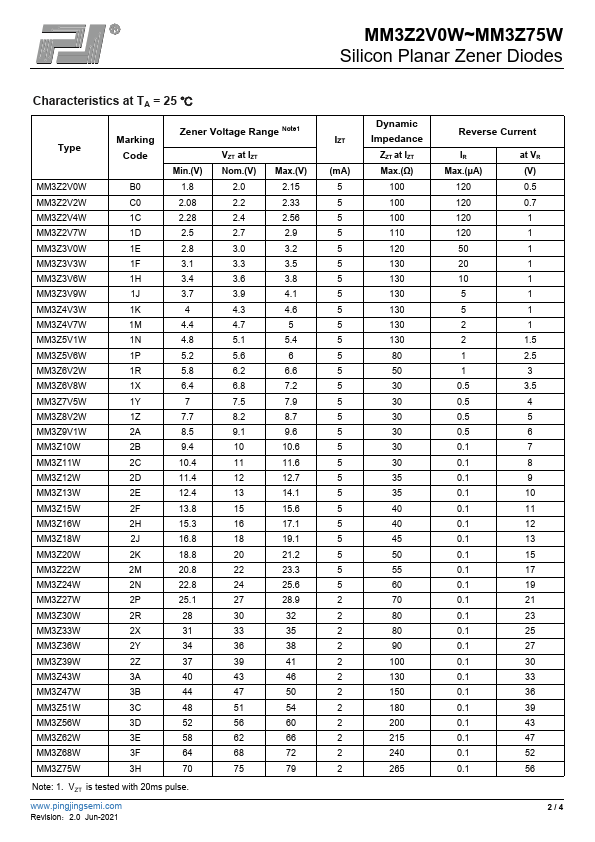

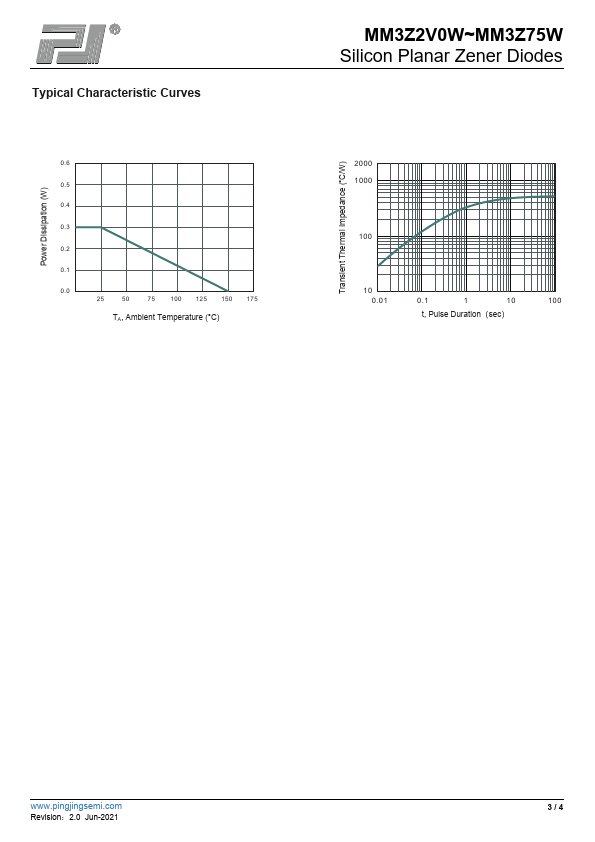

Additional preview pages of the MM3Z6V2W datasheet.

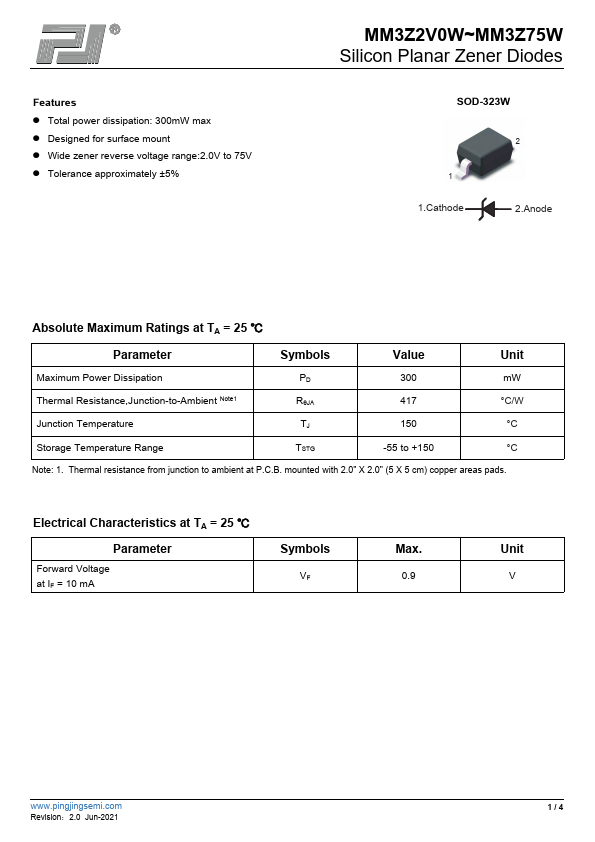

Total power dissipation: 300mW max.
Designed for surface mount.
Wide zener reverse voltage range:2.0V to 75V.
Tolerance approximately ±5% MM3Z2V0W~MM3Z75W Silicon Planar Zener Diodes SOD-323W 1 1.Cathode 2 2.Anode Absolute Maximum Ratings at TA = 25 ℃ Parameter Symbols Value Unit Maximum Power Dissipation PD 300 mW Thermal Resistance,Junction-to-Ambient Note1 RθJA 417 °C/W Junction Temperature TJ 150 °C Storage Temperature Range TSTG -55 to +150 °C.
