DTC115ESC - NPN Digtal Transistor

Product Overview

Part number	DTC115ESC
Manufacturer	PJ
File Size	1.52 MB
Description	NPN Digtal Transistor
Datasheet	DTC115ESC Datasheet

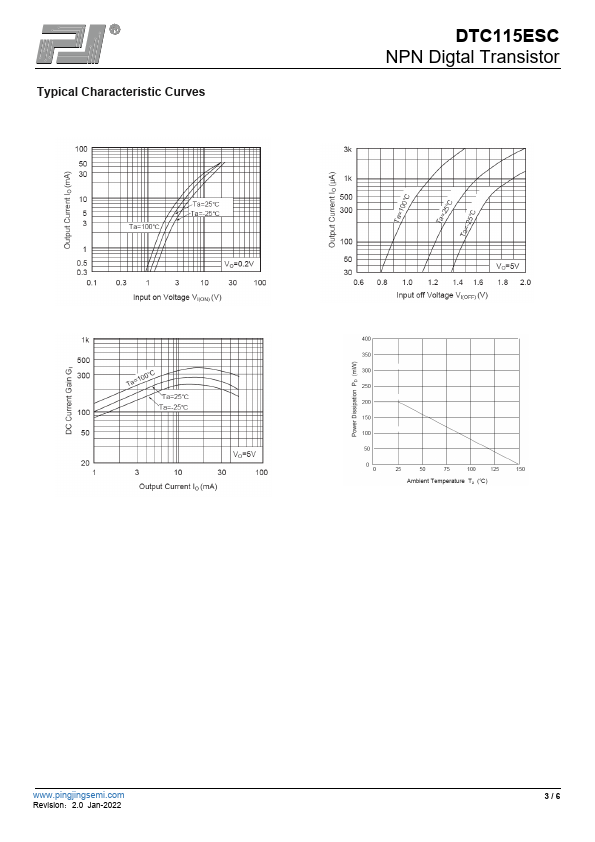

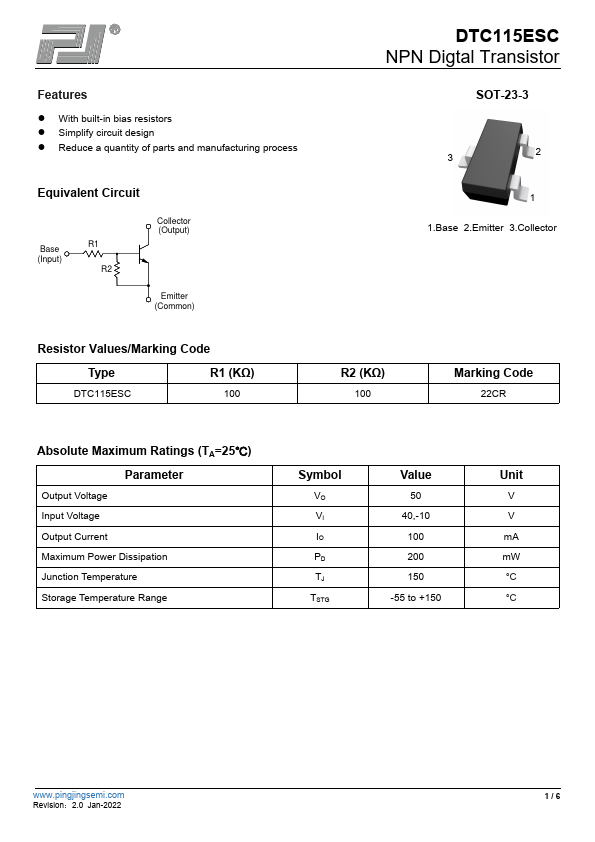

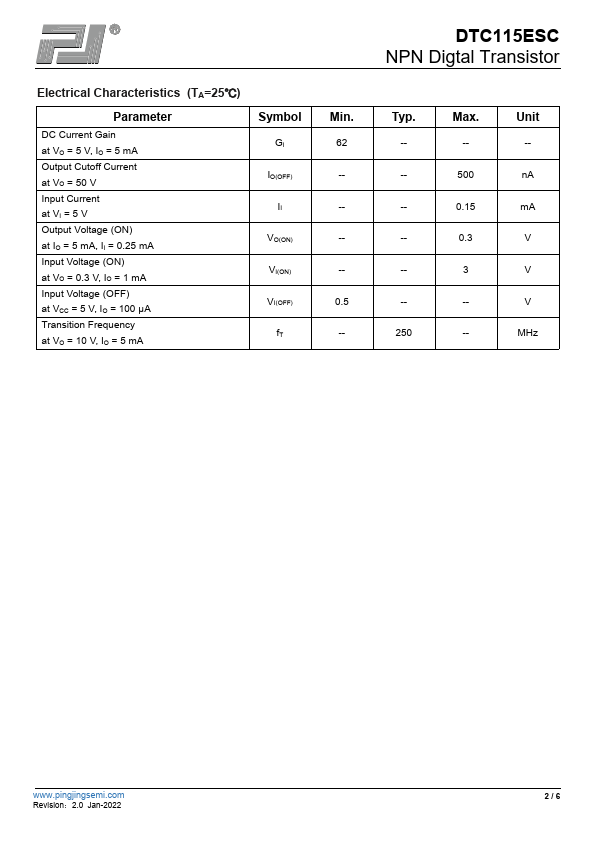

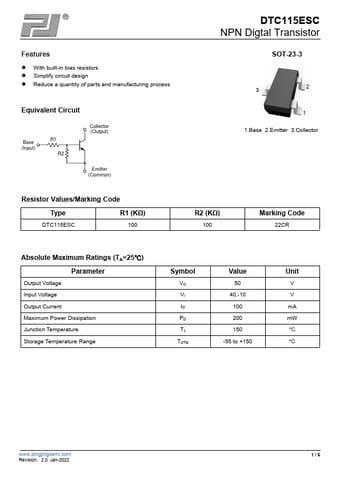

Additional preview pages of the DTC115ESC datasheet.

With built-in bias resistors.
Simplify circuit design.
Reduce a quantity of parts and manufacturing process Equivalent Circuit Base (Input) R1 R2 Collector (Output) Emitter (Common) Resistor Values/Marking Code Type DTC115ESC R1 (KΩ) 100 DTC115ESC NPN Digtal Transistor SOT-23-3 3 2 1 1.Base 2.Emitter 3.Collector R2 (KΩ) 100 Marking Code 22CR Absolute Maximum Ratings (TA=25℃) Parameter Output Voltage Input Voltage Output Current Maximum Power Dissipation Junction Te.
