P1CH3.3A SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR

P1CH3.3A Description

PP1CH3.3A ~ P1CH36A Series SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR Voltage 3.3~36 V Power 150 W SOD-323HE .

P1CH3.3A Features

* Ultra thin profile package for space constrained utilization.
* High temperature soldering : 260℃/10 seconds at terminals
* Lead free in compliance with EU RoHS 2.0
* Green molding compound as per IEC 61249 standard Mechanical Data
* Case: Molded plastic, SOD-323HE
* Term

P1CH3.3A Applications

* shown on the herein document are examples of standard use and operation. Customers are responsible in comprehending the suitable use in particular applications. Panjit International Inc. makes no representation or warranty that such applicat

📥 Download Datasheet

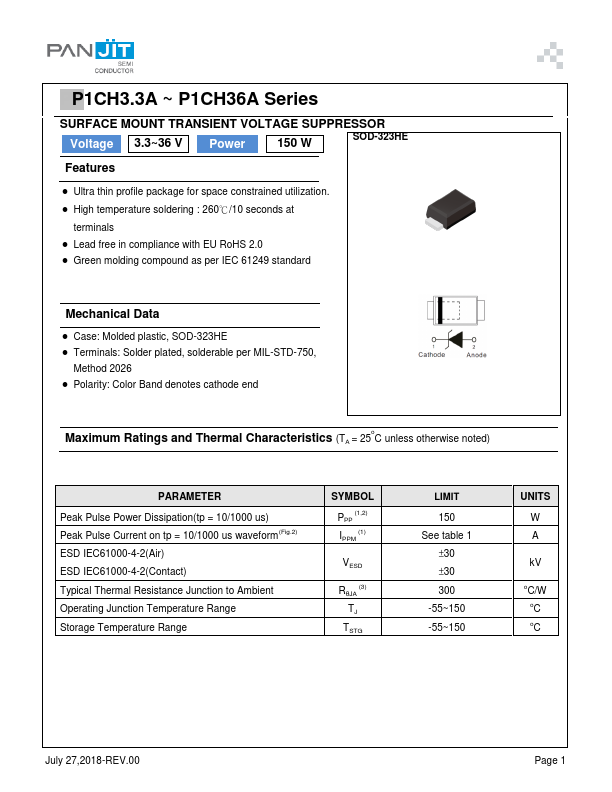

Preview of P1CH3.3A PDF

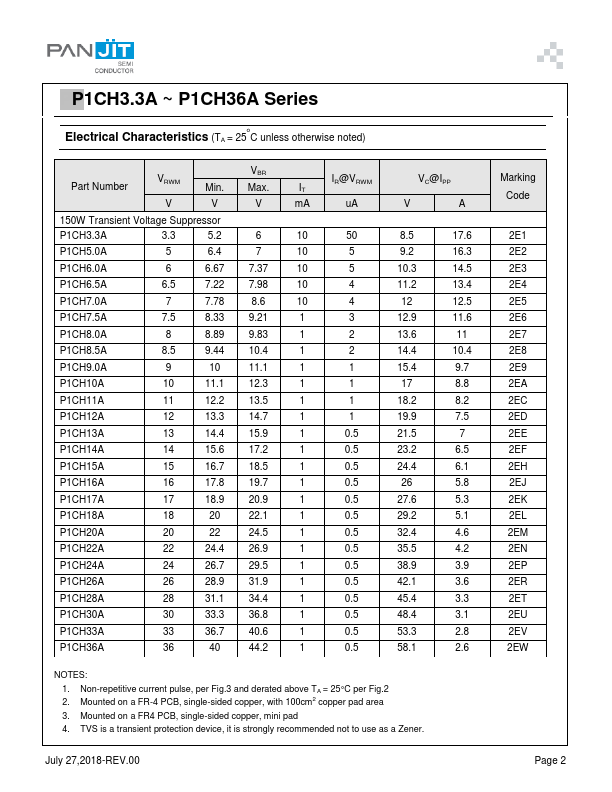

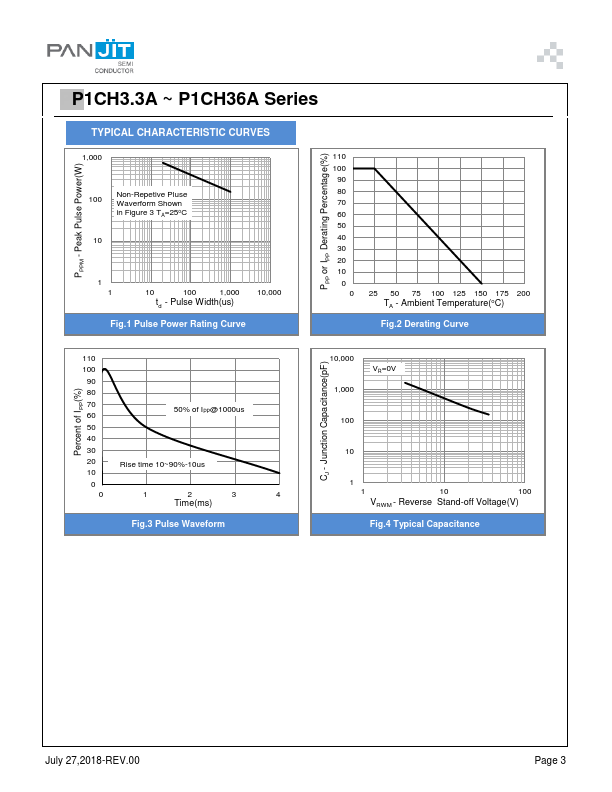

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
P1CH3.3A
Manufacturer
PANJIT
File Size
274.39 KB
Datasheet
P1CH3.3A-PANJIT.pdf
Description
SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR
