MMBZ5258B - SURFACE MOUNT SILICON ZENER DIODES

Product Overview

PANJIT

📥 Download Datasheet

MMBZ5258B SURFACE MOUNT SILICON ZENER DIODES by PANJIT - Datasheet Preview — Datasheet preview – MMBZ5258B

Datasheet Details

Part number	MMBZ5258B
Manufacturer	PANJIT
File Size	1.75 MB
Description	SURFACE MOUNT SILICON ZENER DIODES
Datasheet	MMBZ5258B Datasheet
Note	This datasheet PDF includes multiple part numbers: MMBZ5258B, MMBZ5221B. Please refer to the document for exact specifications by model.

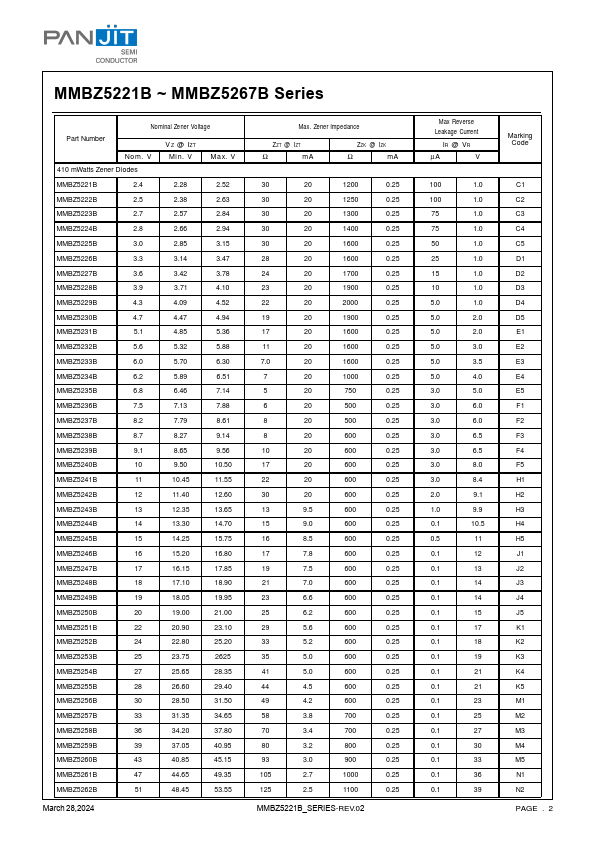

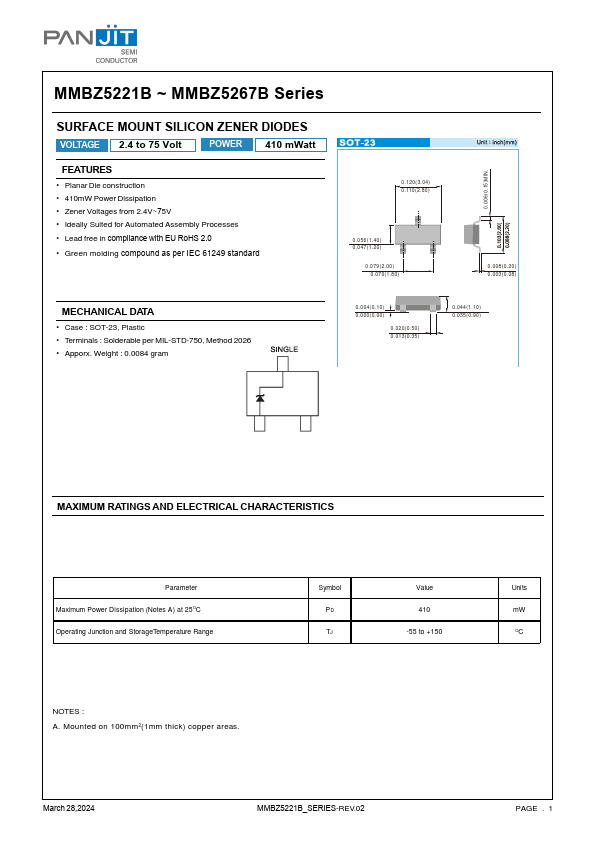

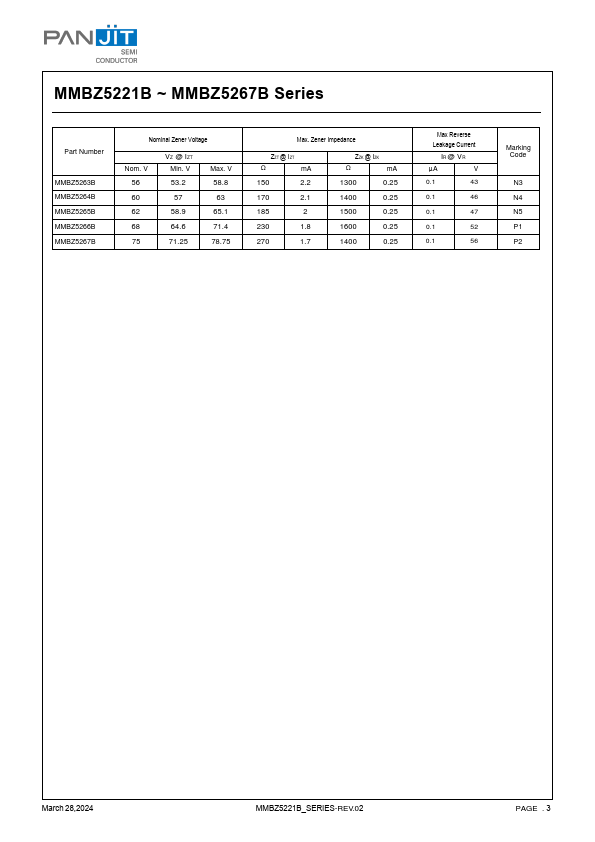

Additional preview pages of the MMBZ5258B datasheet.

Product details

Features

Planar Die construction.
410mW Power Dissipation.
Zener Voltages from 2.4V~75V.
Ideally Suited for Automated Assembly Processes.
Lead free in compliance with EU RoHS 2.0.
Green molding compound as per IEC 61249 standard 0.120(3.04) 0.110(2.80) 0.056(1.40) 0.047(1.20) 0.079(2.00) 0.070(1.80) 0.006(0.15)MIN. 0.008(0.20) 0.003(0.08).
