UF2D - SURFACE MOUNT ULTRAFAST RECTIFIER

Download the UF2D datasheet PDF. This datasheet also covers the UF2A variant, as both devices belong to the same surface mount ultrafast rectifier family and are provided as variant models within a single manufacturer datasheet.

Features

  • For surface mounted.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (UF2A-PANJIT.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
UF2D Ultrafast Plastic Rectifier Crownpo
UF2D SURFACE MOUNT FAST SWITCHING RECTIFIER UPM
UF2D SURFACE MOUNT ULTRAFAST RECTIFIER Hottech
UF2D ULTRA FAST SILICON RECTIFIER DC COMPONENTS
UF2D SURFACE MOUNT ULTRAFAST RECTIFIER YS

Other Datasheets by PanJit Semiconductor

Part Number Description
UF2A SURFACE MOUNT ULTRAFAST RECTIFIER
UF2B SURFACE MOUNT ULTRAFAST RECTIFIER
UF2G SURFACE MOUNT ULTRAFAST RECTIFIER
UF2J SURFACE MOUNT ULTRAFAST RECTIFIER
UF2K SURFACE MOUNT ULTRAFAST RECTIFIER

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

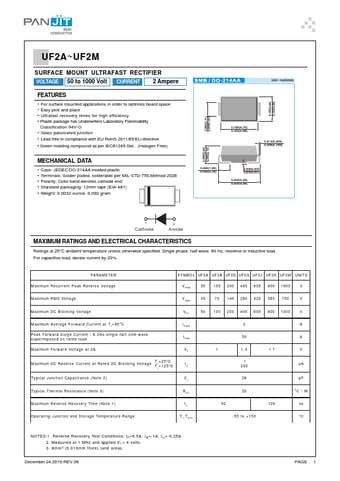

UF2A~UF2M SURFACE MOUNT ULTRAFAST RECTIFIER VOLTAGE 50 to 1000 Volt CURRENT 2 Ampere FEATURES • For surface mounted applications in order to optimize board space • Easy pick and place • Ultrafast recovery times for high efficiency • Plastic package has Underwriters Laboratory Flammability Classification 94V-O • Glass passivated junction • Lead free in compliance with EU RoHS 2011/65/EU directive • Green molding compound as per IEC61249 Std. . (Halogen Free) MECHANICAL DATA • Case: JEDEC DO-214AA molded plastic • Terminals: Solder plated, solderable per MIL-STD-750,Method 2026 • Polarity: Color band denotes cathode end • Standard packaging: 12mm tape (EIA-481) • Weight: 0.0032 ounce, 0.
