S5B - SURFACE MOUNT RECTIFIER

Features

  • Plastic package has Underwriters Laboratory Flammability Classification 94V-O.
  • For surface mounted.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
S5B Standard Recovery SMD Rectifier Diodes Diotec
S5B 5.0A Surface Mount Rectifier TAITRON
S5B Surface Mount Rectifier Taiwan Semiconductor
S5B Standard silicon rectifier diodes Semikron International
S5B 5 Amp Silicon Rectifier 50 to 1000 Volts Micro Commercial Components

Other Datasheets by PanJit Semiconductor

Part Number Description

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

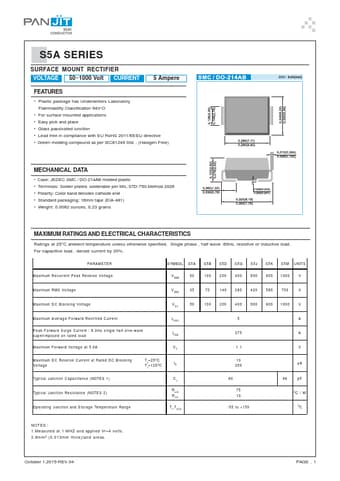

S5A SERIES SURFACE MOUNT RECTIFIER VOLTAGE 50~1000 Volt CURRENT 5 Ampere FEATURES • Plastic package has Underwriters Laboratory Flammability Classification 94V-O • For surface mounted applications • Easy pick and place • Glass passivated iunction • Lead free in compliance with EU RoHS 2011/65/EU directive • Green molding compound as per IEC61249 Std. . (Halogen Free) MECHANICAL DATA • Case: JEDEC SMC / DO-214AB molded plastic • Terminals: Solder plated, solderable per MIL-STD-750,Method 2026 • Polarity: Color band denotes cathode end • Standard packaging: 16mm tape (EIA-481) • Weight: 0.0082 ounces, 0.23 grams MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25°C ambient temperature unless otherwise specified. Single phase , half wave ,60Hz, resistive or inductive load.
