S1A SURFACE MOUNT RECTIFIER

PAN JIT

S1A Description

S1A~S1M SURFACE MOUNT RECTIFIER VOLTAGE 50 to 1000 Volt CURRENT 1 Ampere .

S1A Features

* Plastic package has Underwriters Laboratory Flammability Classification 94V-O

S1A Applications

* in order to optimize board space
* Easy pick and place
* Glass passivated junction
* Complete device submersible temperature of 260°C for 10 seconds in solder bath
* Lead free in compliance with EU RoHS 2011/65/EU directive
* Green molding compound as per IEC6

📥 Download Datasheet

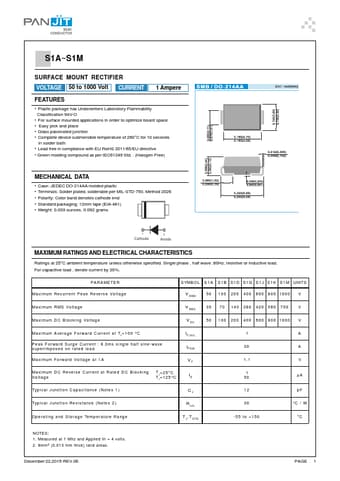

S1A Datasheet Preview — Preview of S1A PDF

Datasheet Details

Part number: S1A
Manufacturer: PAN JIT
File Size: 91.08 KB
Datasheet: S1A-PANJIT.pdf
Description: SURFACE MOUNT RECTIFIER
