P6SMBJ45AS - Transient Voltage Suppressor

Download the P6SMBJ45AS datasheet PDF. This datasheet also covers the P6SMBJ8.5AS variant, as both devices belong to the same transient voltage suppressor family and are provided as variant models within a single manufacturer datasheet.

Features

  • Fast response time.
  • Low incremental surge resistance.
  • Ultra thin profile package for space constrained utilization.
  • High temperature soldering : 260oC/10 seconds at terminals.
  • Lead free in compliance with EU RoHS 2.0.
  • Green molding compound as per IEC 61249 standard Mechanical Data.
  • Case : Molded plastic, SMB.
  • Terminals : Solderable per MIL-STD-750, Method 2026.
  • Approx. Weight : 0.0032 ounces, 0.092 grams Maximum Ratings and Thermal Characteristi.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (P6SMBJ8.5AS-PANJIT.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
P6SMBJ45A SMD Transient Voltage Suppressor Diodes Diotec
P6SMBJ45A 600W SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR WON-TOP ELECTRONICS
P6SMBJ45A 600W SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR TIPTEK
P6SMBJ45A Transient Voltage Suppressors HITANO ENTERPRISE
P6SMBJ45A 600W Transient Voltage Suppressor WeEn

Other Datasheets by PanJit Semiconductor

Part Number Description
P6SMBJ45A SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR
P6SMBJ45 SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR
P6SMBJ45C SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR
P6SMBJ45CA SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR
P6SMBJ45CAS Transient Voltage Suppressor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

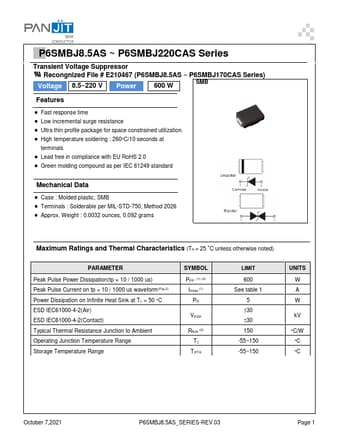

P6SMBJ8.5AS ~ P6SMBJ220CAS Series Transient Voltage Suppressor Recongnized File # E210467 (P6SMBJ8.5AS ~ P6SMBJ170CAS Series) Voltage 8.5~220 V Power 600 W SMB Features  Fast response time  Low incremental surge resistance  Ultra thin profile package for space constrained utilization.  High temperature soldering : 260oC/10 seconds at terminals  Lead free in compliance with EU RoHS 2.0  Green molding compound as per IEC 61249 standard Mechanical Data  Case : Molded plastic, SMB  Terminals : Solderable per MIL-STD-750, Method 2026  Approx. Weight : 0.0032 ounces, 0.092 grams Maximum Ratings and Thermal Characteristics (TA = 25 oC unless otherwise noted) PARAMETER Peak Pulse Power Dissipation(tp = 10 / 1000 us) Peak Pulse Current on tp = 10 / 1000 us waveform(Fig.
