MMBT3906-AU - PNP GENERAL PURPOSE SWITCHING TRANSISTOR

Features

  • PNP epitaxial silicon, planar design.
  • Collector-emitter voltage VCE = -40V.
  • Collector current IC = -200mA.
  • Acqire quality system certificate : TS16949.
  • AEC-Q101 qualified.
  • Lead free in comply with EU RoHS 2002/95/EC directives.
  • Green molding compound as per IEC61249 Std. . (Halogen Free).

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MMBT3906-C PNP Plastic Encapsulated Transistor SeCoS
MMBT3906-G GENERAL PURPOSE TRANSISTORS Comchip Technology
MMBT3906-Q 40V 200mA PNP switching transistor nexperia
MMBT3906 40V PNP SMALL SIGNAL TRANSISTOR Diodes
MMBT3906 PNP Transistor CITC

Other Datasheets by PanJit Semiconductor

Part Number Description
MMBT2907A-AU PNP Transistor
MMBD101W SURFACE MOUNT HIGH FREQUENCY SCHOTTKY DIODE
MMBD352W SURFACE MOUNT HIGH FREQUENCY SCHOTTKY DIODE
MMBD354W SURFACE MOUNT HIGH FREQUENCY SCHOTTKY DIODE
MMBD355W SURFACE MOUNT HIGH FREQUENCY SCHOTTKY DIODE

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

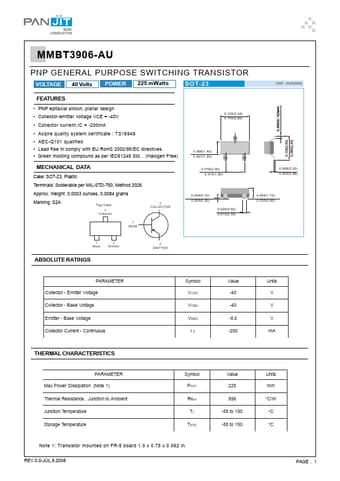

MMBT3906-AU PNP GENERAL PURPOSE SWITCHING TRANSISTOR VOLTAGE 40 Volts POWER 225 mWatts SOT-23 Unit：inch(mm) FEATURES • PNP epitaxial silicon, planar design • Collector-emitter voltage VCE = -40V • Collector current IC = -200mA • Acqire quality system certificate : TS16949 • AEC-Q101 qualified • Lead free in comply with EU RoHS 2002/95/EC directives. • Green molding compound as per IEC61249 Std. . (Halogen Free) MECHANICAL DATA Case: SOT-23, Plastic Terminals: Solderable per MIL-STD-750, Method 2026 Approx. Weight: 0.0003 ounces, 0.0084 grams Marking: S2A Top View 3 Collector 3 COLLECTOR 1 BASE 0.120(3.04) 0.110(2.80) 0.056(1.40) 0.047(1.20) 0.079(2.00) 0.070(1.80) 0.004(0.10) 0.000(0.00) 0.020(0.50) 0.013(0.35) 0.008(0.20) 0.003(0.08) 0.044(1.10) 0.035(0.
