GS1M-L - RECTIFIER

Download the GS1M-L datasheet PDF. This datasheet also covers the GS1A-L variant, as both devices belong to the same rectifier family and are provided as variant models within a single manufacturer datasheet.

Features

  • For surface mounted.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (GS1A-L-PANJIT.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
GS1M-L 1.0 Amp Glass Passivated Rectifier MCC
GS1M-A SURFACE MOUNT RECTIFIER YS
GS1M SURFACE MOUNT RECTIFIER DIODES Sunmate
GS1M Silicon Rectifier MCC
GS1M 1A Surface Mount General Purpose Rectifiers CITC

Other Datasheets by PanJit Semiconductor

Part Number Description
GS1M-AU SURFACE MOUNT RECTIFIER
GS1A-AU SURFACE MOUNT RECTIFIER
GS1A-L RECTIFIER
GS1B-AU SURFACE MOUNT RECTIFIER
GS1B-L RECTIFIER

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

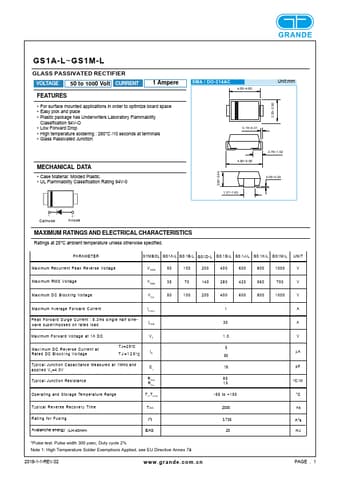

GS1A-L~GS1M-L GLASS PASSIVATED RECTIFIER VOLTAGE 50 to 1000 Volt CURRENT 1 Ampere FEATURES • For surface mounted applications in order to optimize board space • Easy pick and place • Plastic package has Underwriters Laboratory Flammability Classification 94V-O • Low Forward Drop • High temperature soldering : 260°C /10 seconds at terminals • Glass Passivated Junction MECHANICAL DATA • Case Material: Molded Plastic. • UL Flammability Classification Rating 94V-0 SMA / DO-214AC 4.00~4.60 Unit:mm 2.25~2.92 0.15~0.31 4.80~5.59 1.27~1.63 0.76~1.52 0.05~0.20 2.00~2.44 1 Cathode 2 Anode MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25°C ambient temperature unless otherwise specified.
