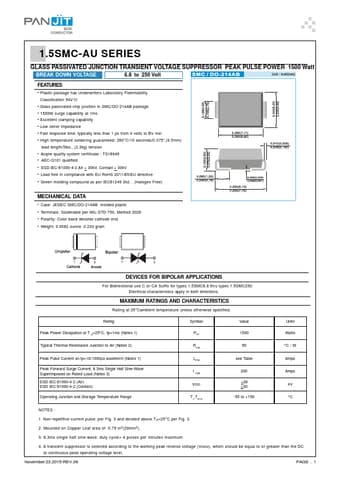

1.5SMC220-AU - GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSOR

Download the 1.5SMC220-AU datasheet PDF. This datasheet also covers the 1.5SMC6.8-AU variant, as both devices belong to the same glass passivated junction transient voltage suppressor family and are provided as variant models within a single manufacturer datasheet.

Features

  • Plastic package has Underwriters Laboratory Flammability Classification 94V-O.
  • Glass passivated chip junction in SMC/DO-214AB package.
  • 1500W surge capability at 1ms.
  • Excellent clamping capability.
  • Low zener impedance.
  • Fast response time: typically less than 1 ps from 0 volts to BV min.
  • High temperature soldering guaranteed: 260°C/10 seconds/0.375",(9.5mm) lead length/5lbs. , (2.3kg) tension.
  • Acqire quality system certificate.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (1.5SMC6.8-AU-PANJIT.pdf) that lists specifications for multiple related part numbers.
