1.5SMC220 - GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSOR

Download the 1.5SMC220 datasheet PDF. This datasheet also covers the 1.5SMC6.8 variant, as both devices belong to the same glass passivated junction transient voltage suppressor family and are provided as variant models within a single manufacturer datasheet.

Features

  • Plastic package has Underwriters Laboratory Flammability Classification 94V-O.
  • Glass passivated chip junction in SMC/DO-214AB package.
  • 1500W surge capability at 1.0ms.
  • Excellent clamping capability.
  • Low zener impedance.
  • Fast response time: typically less than 1.0 ps from 0 volts to BV min.
  • High temperature soldering guaranteed: 260°C/10 seconds/.375" ,(9.5mm) lead length/5lbs. , (2.3kg) tension.
  • Lead free in comply with EU R.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (1.5SMC6.8-PANJIT.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
1.5SMC220 SMD Transient Voltage Suppresssor Diodes Diotec
1.5SMC220 SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR SunMate
1.5SMC220A Transient Voltage Suppressor Diode BOURNS
1.5SMC220A TVS Diodes Littelfuse
1.5SMC220A 1500W Surface Mount Transient Voltage Suppressor TAITRON

Other Datasheets by PanJit Semiconductor

Part Number Description
1.5SMC220-AU GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSOR
1.5SMC220A GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSOR
1.5SMC220A-AU GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSOR
1.5SMC220C GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSOR
1.5SMC220C-AU GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSOR

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

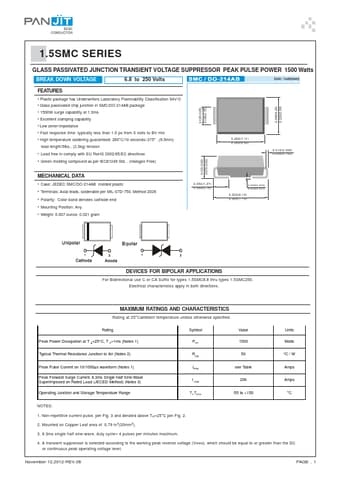

1.5SMC SERIES GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSOR PEAK PULSE POWER 1500 Watts BREAK DOWN VOLTAGE 6.8 to 250 Volts FEATURES • Plastic package has Underwriters Laboratory Flammability Classification 94V-O • Glass passivated chip junction in SMC/DO-214AB package • 1500W surge capability at 1.0ms • Excellent clamping capability • Low zener impedance • Fast response time: typically less than 1.0 ps from 0 volts to BV min • High temperature soldering guaranteed: 260°C/10 seconds/.375" ,(9.5mm) lead length/5lbs., (2.3kg) tension • Lead free in comply with EU RoHS 2002/95/EC directives • Green molding compound as per IEC61249 Std. . (Halogen Free) 0.128(3.25) 0.108(2.75) 0 . 2 8 0 ( 7 . 11 ) 0.260(6.60) 0.012(0.305) 0.006(0.152) 0.245(6.22) 0.220(5.59) 0.103(2.62) 0.
