1.5SMC200CA-AU - GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSOR

Download the 1.5SMC200CA-AU datasheet PDF. This datasheet also covers the 1.5SMC6.8-AU variant, as both devices belong to the same glass passivated junction transient voltage suppressor family and are provided as variant models within a single manufacturer datasheet.

Features

  • Plastic package has Underwriters Laboratory Flammability Classification 94V-O.
  • Glass passivated chip junction in SMC/DO-214AB package.
  • 1500W surge capability at 1ms.
  • Excellent clamping capability.
  • Low zener impedance.
  • Fast response time: typically less than 1 ps from 0 volts to BV min.
  • High temperature soldering guaranteed: 260°C/10 seconds/0.375",(9.5mm) lead length/5lbs. , (2.3kg) tension.
  • Acqire quality system certificate.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (1.5SMC6.8-AU-PANJIT.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
1.5SMC200CA TRANSIENT VOLTAGE SUPPRESSORS Central Semiconductor
1.5SMC200CA TVS Diodes Littelfuse
1.5SMC200CA 1500W Surface Mount Transient Voltage Suppressor TAITRON
1.5SMC200CA Transient Voltage Suppressor Diode BOURNS
1.5SMC200CA Surface Mount Transient Voltage Suppressors JGD

Other Datasheets by PanJit Semiconductor

Part Number Description
1.5SMC200CA GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSOR
1.5SMC200C GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSOR
1.5SMC200C-AU GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSOR
1.5SMC200 GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSOR
1.5SMC200-AU GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSOR

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

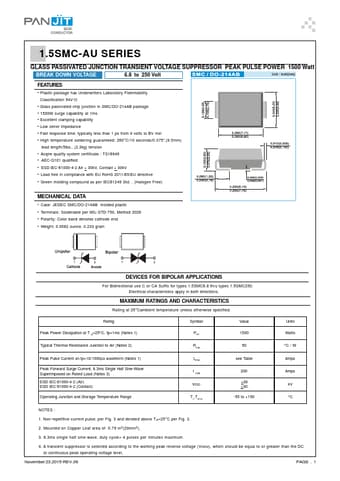

1.5SMC-AU SERIES GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSOR PEAK PULSE POWER 1500 Watt BREAK DOWN VOLTAGE 6.8 to 250 Volt FEATURES • Plastic package has Underwriters Laboratory Flammability Classification 94V-O • Glass passivated chip junction in SMC/DO-214AB package • 1500W surge capability at 1ms • Excellent clamping capability • Low zener impedance • Fast response time: typically less than 1 ps from 0 volts to BV min • High temperature soldering guaranteed: 260°C/10 seconds/0.375",(9.5mm) lead length/5lbs., (2.3kg) tension • Acqire quality system certificate : TS16949 • AEC-Q101 qualified • ESD IEC-61000-4-2 Air + 30kV, Contact + 30kV • Lead free in compliance with EU RoHS 2011/65/EU directive • Green molding compound as per IEC61249 Std. .
