OXCFU950 - USB/UART multi-function 16-bit PC Card device

📥 Download Datasheet

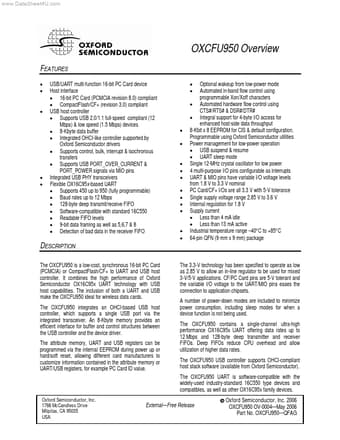

OXCFU950 Datasheet Preview — Preview of OXCFU950 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	OXCFU950
Manufacturer	Oxford Semiconductor
File Size	125.81 KB
Description	USB/UART multi-function 16-bit PC Card device
Datasheet	OXCFU950_OxfordSemiconductor.pdf

OXCFU950 Product details

Description

The OXCFU950 is a low-cost, synchronous 16-bit PC Card (PCMCIA) or CompactFlash/CF+ to UART and USB host controller.

Features

USB/UART multi-function 16-bit PC Card device Host interface.
16-bit PC Card (PCMCIA revision 8.0) compliant.
CompactFlash/CF+ (revision 3.0) compliant USB host controller.
Supports USB 2.0/1.1 full-speed compliant (12 Mbps) & low speed (1.5 Mbps) devices.
8-Kbyte data buffer.
Integrated OHCI-like controller supported by Oxford Semiconductor drivers.
Supports control, bulk, interrupt & isochronous transfers.
