SCDQ5543x, SCDQ5541 - (SCDQ5541x - SCDQ5544x) Intelligent Display / 0.134 Inch / 4-Character / 5 X 5 Dot Matrix

Osram Opto Semiconductors

The SCDQ5543x by Osram Opto Semiconductors is a (SCDQ5541x - SCDQ5544x) Intelligent Display / 0.134 Inch / 4-Character / 5 X 5 Dot Matrix. Below is the official datasheet preview.

📥 Download Datasheet

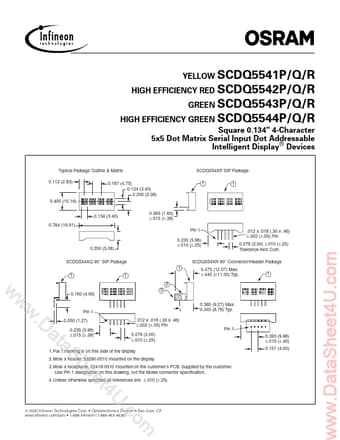

SCDQ5543x (SCDQ5541x - SCDQ5544x) Intelligent Display / 0.134 Inch / 4-Character / 5 X 5 Dot Matrix by Osram Opto Semiconductors - Datasheet Preview — Official preview page of the **SCDQ5543x** (SCDQ5541x - SCDQ5544x) Intelligent Display / 0.134 Inch / 4-Character / 5 X 5 Dot Matrix datasheet (Osram Opto Semiconductors).

Datasheet Details

Part number	SCDQ5543x, SCDQ5541
Manufacturer	Osram Opto Semiconductors
File Size	1.00 MB
Description	(SCDQ5541x - SCDQ5544x) Intelligent Display / 0.134 Inch / 4-Character / 5 X 5 Dot Matrix
Datasheet	SCDQ5541_OsramOptoSemiconductors.pdf
Note	This datasheet PDF includes multiple part numbers: SCDQ5543x, SCDQ5541. Please refer to the document for exact specifications by model.
Additional preview pages of the SCDQ5543x datasheet.

SCDQ5543x Product details

Description

The SCDQ5541X (Yellow), SCDQ5542X (High Efﬁciency Red), SCDQ5543X (Green), and SCDQ5544X (High Efﬁciency Green) are four digit, dot addressable 5x5 dot matrix, serial input, alphanumeric Intelligent Display devices in a square format.

Features

Four 0.134" (3.40 mm) 5x5 Dot Matrix Characters in Yellow, High Efﬁciency Red, Green, or High Efﬁciency Green.
Optimum Display Surface Efﬁciency (display area to package ratio).
Square Character Format to Display Data in a Vertical or Horizontal Format.
High Speed Data Input Rate: 5.0 MHz.
ROMless Serial Input, Dot Addressable Display.
Ideal for User Deﬁned Characters.
Built-in Decoders, Multiplexers and LED Drivers.
Readabl.
