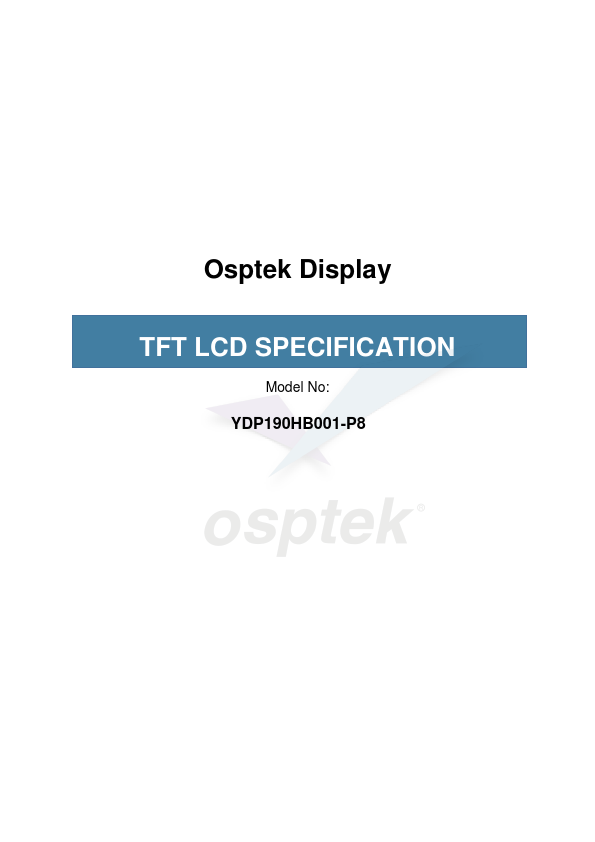

YDP190HB001-P8 - TFT LCD

Product Overview

Osptek

Datasheet Details

Part number	YDP190HB001-P8
Manufacturer	Osptek
File Size	1.70 MB
Description	TFT LCD
Datasheet	YDP190HB001-P8 Datasheet
Additional preview pages of the YDP190HB001-P8 datasheet.

Product details

Description

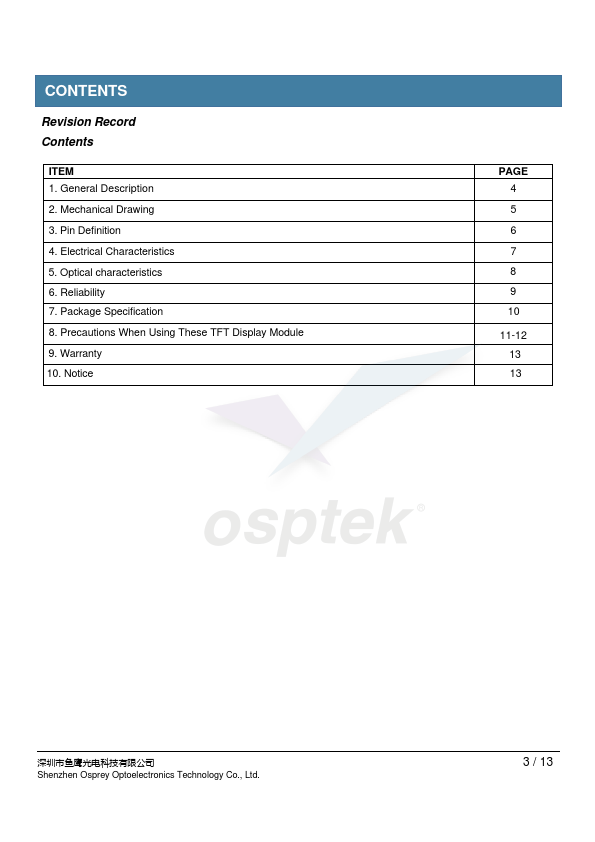

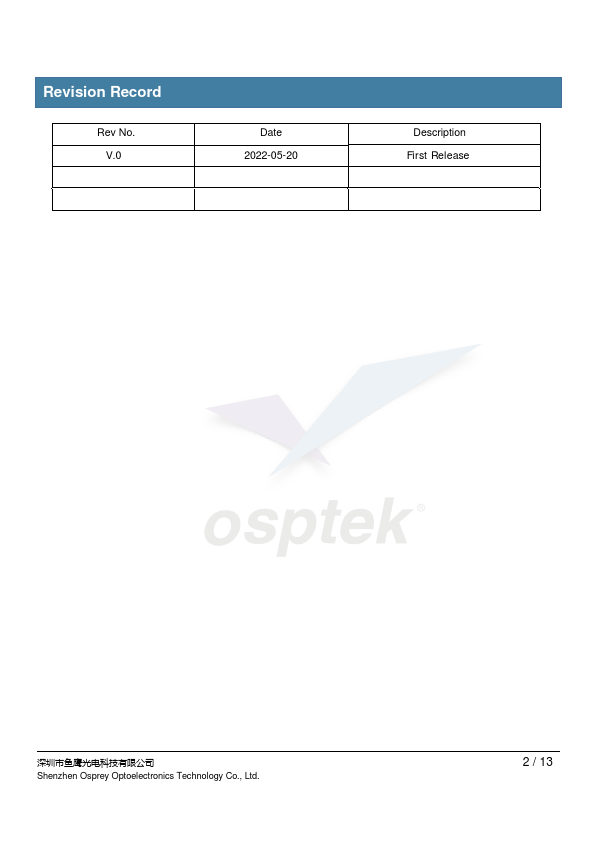

First Release Shenzhen Osprey Optoelectronics Technology Co., Ltd.2 / 13 CONTENTS Revision Record Contents ITEM 1. General Description 2. Mechanical Drawing 3. Pin Definition 4. Electrical Characteristics 5. Optical characteristics 6. Reliability 7. Package Specification 8. Precautions When Using These TFT Display Module 9. Warranty 10. Notice PAGE 4 5 6 7 8 9 10 11-12 13 13 Shenzhen Osprey Optoelectronics Technology Co., Ltd.3 / 13 1. General Description 1.1 Description YDP190HB001-

Features

NO. Item 1 LCD Size 2 Display Mode 3 Resolution 4 Dot pitch 5 Active area 6 Module size 7 Color arrangement 8 Interface 9 Drive IC 10 Luminance(cd/m2) 11 Viewing Direction 12 Backlight 13 Operating Temp. 14 Storage Temp. 15 Weight Contents 1.9 inch(Diagonal) Normally black 170(H)RGB x 320(V) 0.1335(H) x 0.1335(V) mm 22.695(H) x 42.72(V) mm 27.3(H) x 51.2(V) x3.23(D) mm RGB Vtertical stripe SPI ST7789 300 (TYP) All View 2 White LED -20℃~ + 70℃ -30℃~+ 80℃ TBD Unit - ℃ ℃ g Shenzhen O.
