OCH1443 60V High Voltage Unipolar Hall Effect Position Sensor

OCH1443 Description

OCH1443 60V High Voltage Unipolar Hall Effect Position Sensor * General .
The OCH1443 is an integrated Hall effect sensor designed for electronic commutation of brush-less high-voltage high-power DC motor applications.

OCH1443 Features

* Wide operating voltage range: 3.8V~60V
* ESD:HBM-8KV
* Wide operating temperature range: -40°C~+150°C
* Robust open-collector output
* Package: SIP-3L(TO92S)

OCH1443 Applications

* The device includes an on-chip Hall voltage generator for magnetic sensing, a comparator that amplifiers the Hall voltage, and a Schmitt trigger to provide switching hysteresis for noise rejection, and an open-collector output. An internal bandgap regulator is used to provide temperature compensate

📥 Download Datasheet

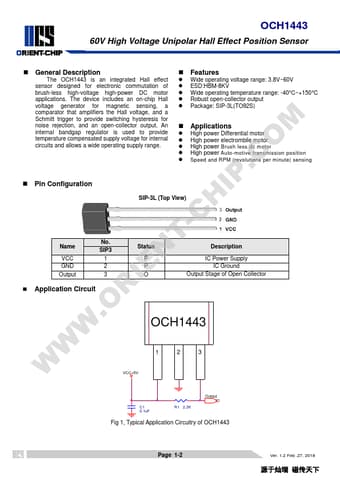

Preview of OCH1443 PDF
