XPS-2360WG - 10Gbps / 60km / 1550 nm XFP Single-Mode Optical Transceiver

Name: XPS-2360WG
SKU: XPS-2360WG-691612

The XPS-2360WG by Optoway Technology is a 10Gbps / 60km / 1550 nm XFP Single-Mode Optical Transceiver. Below is the official datasheet preview.

📥 Download Datasheet

XPS-2360WG 10Gbps / 60km / 1550 nm XFP Single-Mode Optical Transceiver by Optoway Technology - Datasheet Preview — Official preview page of the **XPS-2360WG** 10Gbps / 60km / 1550 nm XFP Single-Mode Optical Transceiver datasheet (Optoway Technology).

Datasheet Details

Part number	XPS-2360WG
Manufacturer	Optoway Technology
File Size	311.76 KB
Description	10Gbps / 60km / 1550 nm XFP Single-Mode Optical Transceiver
Datasheet	XPS-2360WG_OptowayTechnology.pdf

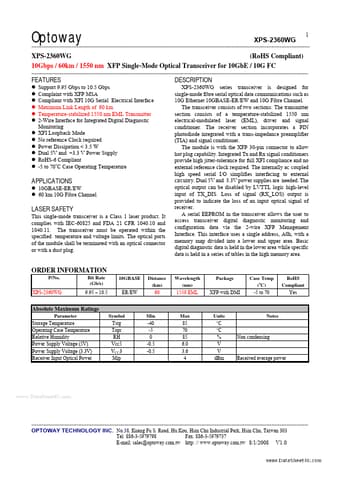

Additional preview pages of the XPS-2360WG datasheet.

XPS-2360WG Product details

Description

Features

z z z z z z z z z z z z Support 9.95 Gbps to 10.5 Gbps Complaint with XFP MSA Compliant with XFI 10G Serial Electrical Interface Maximum Link Length of 60 km Temperature-stabilized 1550 nm EML Transmitter 2-Wire Interface for Integrated Digital Diagnostic Monitoring XFI Loopback Mode No reference Clock required Power Dissipation < 3.5 W Dual 5V and +3.3 V Power Supply RoHS-6 Compliant -5 to 70oC Case Operating Temperature XPS-2360WG (RoHS Compliant).
