OST-9N15, OST-9N15-Opto - PHOTO TRANSISTOR

OST-9N15 Description

OST-9N15 PHOTO TRANSISTOR * General .
The OST-9N15 is high sensitivity NPN silicon photo-transistor mounted in a SMD plastic package. Features ˙Compact ˙Wide angular response ˙Low co.

OST-9N15 Features

* ˙Compact ˙Wide angular response ˙Low cost ˙Meet RoHS

OST-9N15 Applications

* ˙Optical counters ˙Optical detectors ˙Camera stroboscopes
* MAXIMUM RATINGS Item Symbol Rating Power dissipation Pd 100 Operating temperature. Topr -25 ~ +75 Storage temperature. Tstg -25 ~ +100 Soldering temperature.
* 1 Tsol 260
* 1 For MAX. 5 secends at the position of 5m

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: OST-9N15, OST-9N15-Opto. Please refer to the document for exact specifications by model.

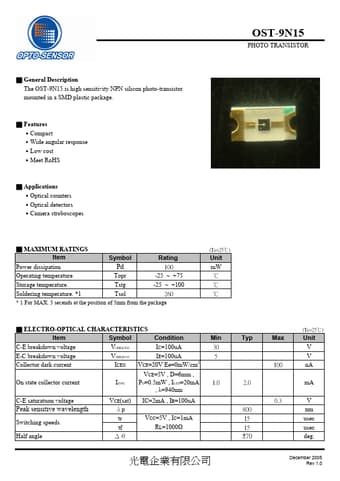

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
OST-9N15, OST-9N15-Opto
Manufacturer
Opto-Sensor
File Size
351.39 KB
Datasheet
OST-9N15-Opto-Sensor.pdf
Description
PHOTO TRANSISTOR
Note
This datasheet PDF includes multiple part numbers: OST-9N15, OST-9N15-Opto.
Please refer to the document for exact specifications by model.
