MP120D4 - Soild State Relay

Opto 22

The MP120D4 by Opto 22 is a Soild State Relay. Below is the official datasheet preview.

📥 Download Datasheet

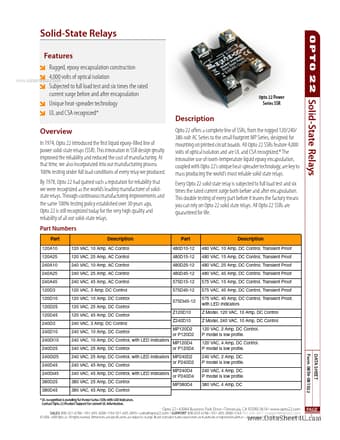

MP120D4 Soild State Relay by Opto 22 - Datasheet Preview — Official preview page of the **MP120D4** Soild State Relay datasheet (Opto 22).

Datasheet Details

Part number	MP120D4
Manufacturer	Opto 22
File Size	398.86 KB
Description	Soild State Relay
Datasheet	MP120D4_Opto22.pdf
Additional preview pages of the MP120D4 datasheet.

MP120D4 Product details

Description

Opto 22 offers a complete line of SSRs, from the rugged 120/240/ 380-volt AC Series to the small footprint MP Series, designed for mounting on printed circuit boards. The innovative use of room-temperature liquid epoxy encapsulation, coupled with Opto 22’s unique heat-spreader technology, are key to mass producing the world’s most reliable solid state relays.

Features

Rugged, epoxy encapsulation construction 4,000 volts of optical isolation www. datasheet4u. com Subjected to full load test and six times the rated current surge before and after encapsulation Unique heat-spreader technology UL and CSA recognized.
Opto 22 Power Series SSR Solid-State Relays.
