OB3639B - Low THD Offline LED Lighting Controller

Download the OB3639B datasheet PDF. This datasheet also covers the OB3639B-On variant, as both devices belong to the same low thd offline led lighting controller family and are provided as variant models within a single manufacturer datasheet.

Description

OB3639B is an offline LED lighting controller with high power factor, low THD and high constant current (CC) precision.

It can achieve low system cost for isolated lighting application by primary side control in a single stage converter.

Features

  • including programmable line voltage foldback , programmable line voltage OVP, NTC thermistor thermal foldback, LED open loop protection, LED short circuit protection, cycle-by-cycle current limiting, built-in leading edge blanking, VDD under voltage lockout (UVLO), etc. OB3639B is offered in SOP-8 package.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (OB3639B-On-Bright.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number OB3639B
Manufacturer On-Bright
File Size 412.03 KB
Description Low THD Offline LED Lighting Controller
Datasheet download datasheet OB3639B Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
OB3 Voltage Regulator TUNG-SOL
OB33 4.0 mA output pad cell austriamicrosystems
OB3302 Cost Effective CCFL Controller GreenEngine
OB3306 High Integrated LCD Monitor Backlight Inverter Controller GreenEngine

Other Datasheets by On-Bright

Part Number Description
OB3639A Low THD Offline LED Lighting Controller
OB3635A Low THD Offline LED Lighting Controller
OB3636 Low THD Offline CV Controller
OB3636A Low THD Offline CV Controller
OB3613 High PF Non-Isolated Buck LED Lighting Controller

Full PDF Text Transcription

Click to expand full text

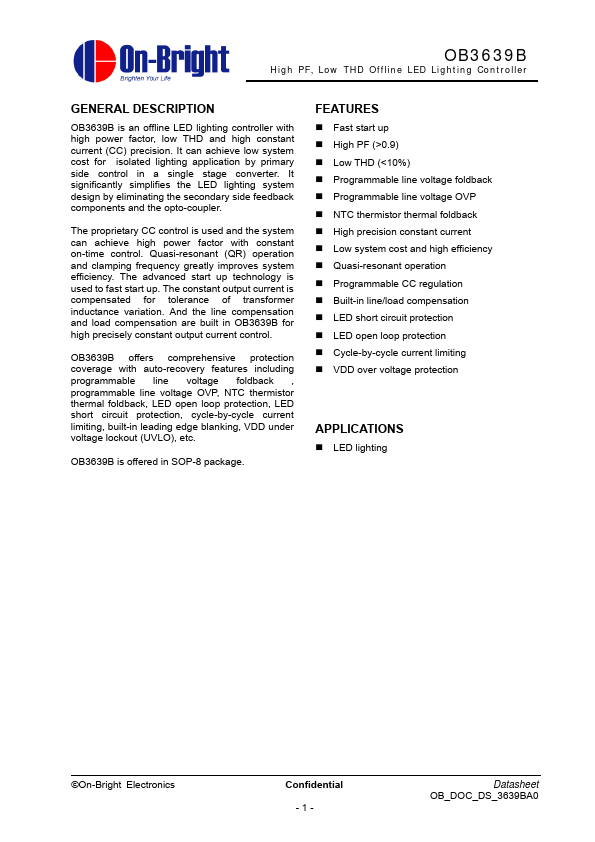

OB3639B High PF, Low THD Offline LED Lighting Controller GENERAL DESCRIPTION OB3639B is an offline LED lighting controller with high power factor, low THD and high constant current (CC) precision. It can achieve low system cost for isolated lighting application by primary side control in a single stage converter. It significantly simplifies the LED lighting system design by eliminating the secondary side feedback components and the opto-coupler. The proprietary CC control is used and the system can achieve high power factor with constant on-time control. Quasi-resonant (QR) operation and clamping frequency greatly improves system efficiency. The advanced start up technology is used to fast start up.
