OB2362D - Multi-Mode PWM Controller

Name: OB2362D
SKU: OB2362D-1594630

On-Bright Electronics

📥 Download Datasheet

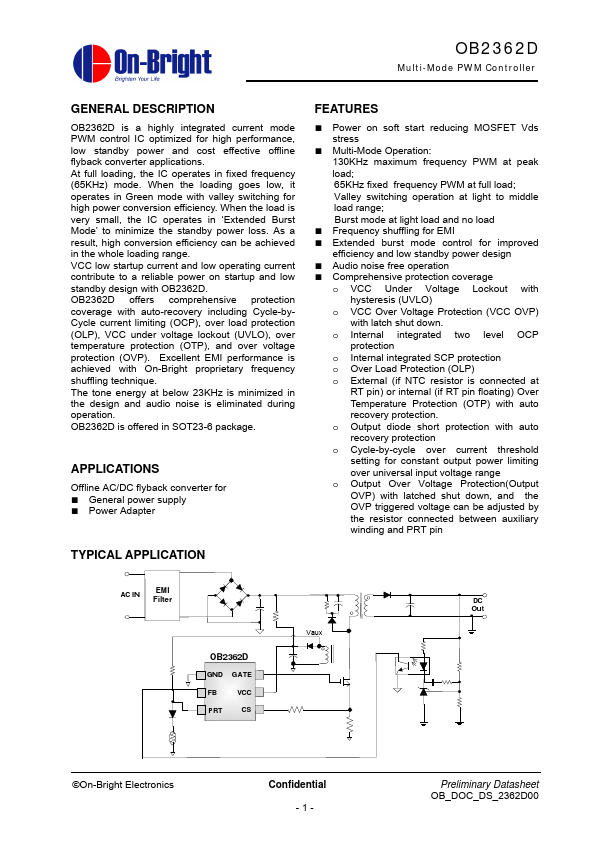

OB2362D Datasheet Preview — Preview of OB2362D PDF

Datasheet Details

Part number	OB2362D
Manufacturer	On-Bright Electronics
File Size	776.16 KB
Description	Multi-Mode PWM Controller
Datasheet	OB2362D-OnBrightElectronics.pdf

OB2362D Product details

Description

OB2362D is a highly integrated current mode PWM control IC optimized for high performance, low standby power and cost effective offline flyback converter applications.

Features

Power on soft start reducing MOSFET Vds stress.
Multi-Mode Operation: 130KHz maximum frequency PWM at peak load; 65KHz fixed frequency PWM at full load; Valley switching operation at light to middle load range; Burst mode at light load and no load.
Frequency shuffling for EMI.
Extended burst mode control for improved efficiency and low standby power design.
Audio noise free operation.
Comprehensive protection coverage o VCC Under Voltage Lockout with hysteresis (UV.
