XS5W-D42x-x81-x, XS5 - Round Water-resistant Connectors

Name: XS5W-D42x-x81-x
SKU: XS5W-D42x-x81-x-692447

Omron

The XS5W-D42x-x81-x by Omron is a Round Water-resistant Connectors. Below is the official datasheet preview.

Datasheet Details

Part number	XS5W-D42x-x81-x, XS5
Manufacturer	Omron
File Size	2.57 MB
Description	Round Water-resistant Connectors
Datasheet	XS5_Omron.pdf
Note	This datasheet PDF includes multiple part numbers: XS5W-D42x-x81-x, XS5. Please refer to the document for exact specifications by model.

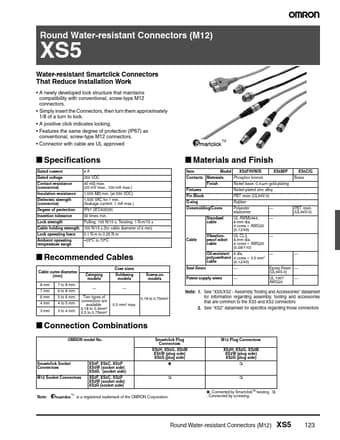

Additional preview pages of the XS5W-D42x-x81-x datasheet.

s the same degree of protection (IP67) as conventional, screw-type M12 connectors.
Connector with cable are UL approved TM.
Specifications Rated current Rated voltage Contact resistance (connector) Insulation resistance Dielectric strength (connector) Degree of protection Insertion tolerance Lock strength Cable holding strength Lock operating force Ambient operating temperature range 4A 250 VDC 40 mΩ max. (20 mV max. , 100 mA max. ) 1,000 MΩ min. (at 500 VDC) 1,500 VAC for 1 min.
