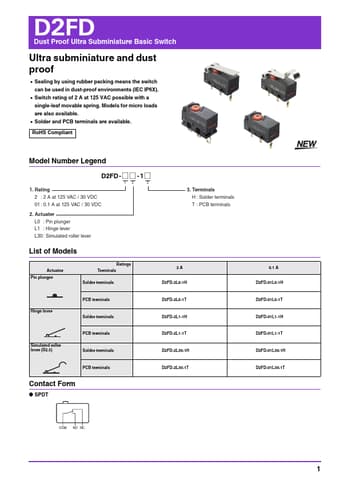

D2FD Dust Proof Ultra Subminiature Basic Switch Ultra subminiature and dust proof • Sealing by using rubber packing means the switch can be used in dust-proof environments (IEC IP6X). • Switch rating of 2 A at 125 VAC possible with a single-leaf movable spring. Models for micro loads are also available. • Solder and PCB terminals are available. RoHS Compliant Model Number Legend D2FD - @ @ - 1 @ 12 3 1. Rating 2 : 2 A at 125 VAC / 30 VDC 01 : 0.1 A at 125 VAC / 30 VDC 2. Actuater L0 : Pin plunger L1 : Hinge lever L30 : Simulated roller lever 3. Terminals H : Solder terminals T : PCB terminals List of Models Actuator Pin plunger Ratings Terminals Solder terminals 2A D2FD-2L0-1H Hinge lever PCB terminals Solder terminals D2FD-2L0-1T D2FD-2L1-1H Simulated roller lever (R2.
