OM4206RT - DUAL POWER SCHOTTKY RECTIFIER

Download the OM4206RT datasheet PDF. This datasheet also covers the OM4206 variant, as both devices belong to the same dual power schottky rectifier family and are provided as variant models within a single manufacturer datasheet.

Description

This product is specifically designed for use at power switching frequencies in excess of 100 kHz.

The product combines two Schottky-barrier diodes in a center-tap configuration in a single package, simplifying installation, reducing heat sink hardware, and the need to obtain matched components.

Features

  • Very Low Forward Voltage.
  • Fast Switching Speed.
  • Hermetic Metal Package, TO-257AA Outline.
  • Low Thermal Resistance.
  • Isolated Package.
  • Available Screened To MIL-S-19500, TX, TXV And S Levels.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (OM4206_ETC.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number OM4206RT
Manufacturer Omnlrel
File Size 18.27 KB
Description DUAL POWER SCHOTTKY RECTIFIER
Datasheet download datasheet OM4206RT Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
OM4201ST 45 Volt Rating Center-Tap Rectifier ETC
OM4202DC DUAL POWER SCHOTTKY RECTIFIER ETC
OM4031T Digital post-detection filter for FSK data receivers NXP
OM4068 LCD driver for low multiplex rates NXP
OM4085 Universal LCD driver for low multiplex rates NXP

Other Datasheets by Omnlrel

Part Number Description
OM4206DT DUAL POWER SCHOTTKY RECTIFIER
OM4206ST DUAL POWER SCHOTTKY RECTIFIER
OM4201DT 45 Volt Rating Center-Tap Rectifier
OM4201RT 45 Volt Rating Center-Tap Rectifier
OM4202RC DUAL POWER SCHOTTKY RECTIFIER

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

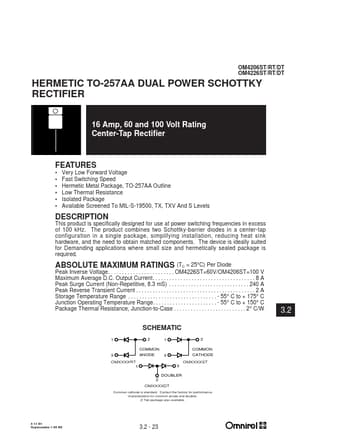

OM4206ST/RT/DT OM4226ST/RT/DT HERMETIC TO-257AA DUAL POWER SCHOTTKY RECTIFIER 16 Amp, 60 and 100 Volt Rating Center-Tap Rectifier FEATURES • Very Low Forward Voltage • Fast Switching Speed • Hermetic Metal Package, TO-257AA Outline • Low Thermal Resistance • Isolated Package • Available Screened To MIL-S-19500, TX, TXV And S Levels DESCRIPTION This product is specifically designed for use at power switching frequencies in excess of 100 kHz. The product combines two Schottky-barrier diodes in a center-tap configuration in a single package, simplifying installation, reducing heat sink hardware, and the need to obtain matched components. The device is ideally suited for Demanding applications where small size and hermetically sealed package is required.
