OH34N, OH34 - Unipolar Hall IC

OH34N Description

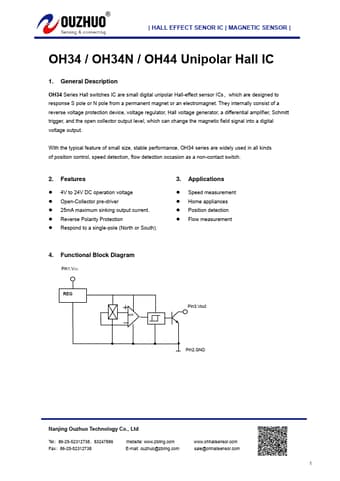

| HALL EFFECT SENOR IC | MAGNETIC SENSOR | OH34 / OH34N / OH44 Unipolar Hall IC 1.General .
OH34 Series Hall switches IC are small digital unipolar Hall-effect sensor ICs，which are designed to response S pole or N pole from a permanent magnet.

OH34N Features

* 4V to 24V DC operation voltage
* Open-Collector pre-driver
* 25mA maximum sinking output current.
* Reverse Polarity Protection

OH34N Applications

* Speed measurement
* Home appliances
* Position detection
* Flow measurement 4. Functional Block Diagram Pin1.VCC REG AMP m Pin3.Vout Pin2.GND Nanjing Ouzhuo Technology Co. , Ltd Tel：86-25-52312738，83247886 Fax：86-25-52312738 Website: www. zbling. com E-mail: ouzhuo@zbling. com
