OH-DG-02 - Magnetic Pickup

Download the OH-DG-02 datasheet PDF. This datasheet also covers the OH-DG-01 variant, as both devices belong to the same magnetic pickup family and are provided as variant models within a single manufacturer datasheet.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (OH-DG-01-OUZHUO.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number OH-DG-02
Manufacturer OUZHUO
File Size 134.42 KB
Description Magnetic Pickup
Datasheet download datasheet OH-DG-02 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer

Other Datasheets by OUZHUO

Part Number Description
OH-DG-01 Magnetic Pickup
OH-DY-01 Magnetic Pickup

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

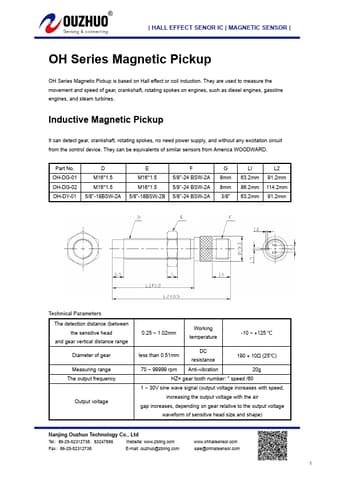

| HALL EFFECT SENOR IC | MAGNETIC SENSOR | OH Series Magnetic Pickup OH Series Magnetic Pickup is based on Hall effect or coil induction. They are used to measure the movement and speed of gear, crankshaft, rotating spokes on engines, such as diesel engines, gasoline engines, and steam turbines. Inductive Magnetic Pickup It can detect gear, crankshaft, rotating spokes, no need power supply, and without any excitation circuit from the control device. They can be equivalents of similar sensors from America WOODWARD. Part No. OH-DG-01 OH-DG-02 OH-DY-01 D M16*1.5 M16*1.5 5/8"-18BSW-2A E M16*1.5 M16*1.5 5/8"-18BSW-2B F 5/8"-24 BSW-2A 5/8"-24 BSW-2A 5/8"-24 BSW-2A G 8mm 8mm 3/8" LI 63.2mm 86.2mm 63.2mm L2 91.2mm 114.2mm 91.
