LY3360 - LED

Features

  • package: colored, diffused 3 mm (T1) package.
  • feature of the device: solder leads with stand-off.
  • wavelength: 645 nm (red), 628 nm (super-red), 606 nm (orange), 587 nm (yellow), 570 nm (green), 560 nm (pure green).
  • viewing angle: 70°.
  • technology: GaAlP (red, super-red, orange, yellow, gr.

📥 Download Datasheet

📁 Similar Datasheet

  • LY3360 - T1(3mm) LED LAMP (Siemens Semiconductor Group)
  • LY3366 - Hyper-Bright LED (Siemens)
  • LY3369 - Low Current LED (Siemens)
  • LY330ALH - MEMS motion sensor (STMicroelectronics)
  • LY3330-PF - ROUND TYPE LED LAMPS (LIGITEK)
  • LY3336 - Hyper-Bright LED (Siemens)
  • LY3336 - Hyper-Bright LED (OSRAM Opto Semiconductors)
  • LY3340 - LED (Siemens)
  • LY3341 - Super-Bright LED (Siemens)
  • LY3380 - Wide-Angle LED (Siemens)
Other Datasheets by OSRAM

Full PDF Text Transcription

Click to expand full text

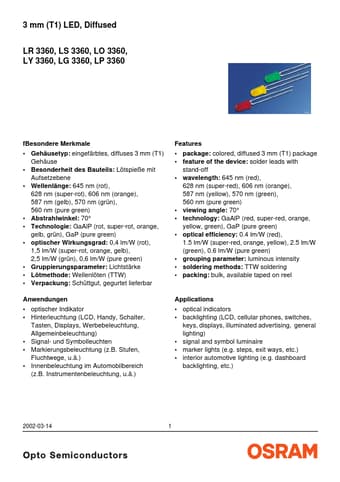

3 mm (T1) LED, Diffused LR 3360, LS 3360, LO 3360, LY 3360, LG 3360, LP 3360 fBesondere Merkmale • Gehäusetyp: eingefärbtes, diffuses 3 mm (T1) Gehäuse • Besonderheit des Bauteils: Lötspieße mit Aufsetzebene • Wellenlänge: 645 nm (rot), 628 nm (super-rot), 606 nm (orange), 587 nm (gelb), 570 nm (grün), 560 nm (pure green) • Abstrahlwinkel: 70° • Technologie: GaAlP (rot, super-rot, orange, gelb, grün), GaP (pure green) • optischer Wirkungsgrad: 0,4 lm/W (rot), 1,5 lm/W (super-rot, orange, gelb), 2,5 lm/W (grün), 0,6 lm/W (pure green) • Gruppierungsparameter: Lichtstärke • Lötmethode: Wellenlöten (TTW) • Verpackung: Schüttgut, gegurtet lieferbar Features • package: colored, diffused 3 mm (T1) package • feature of the device: solder leads with stand-off • wavelength: 645 nm (red), 628 nm (s
