COM35H3P09UTC, Blanview TFT-LCD Monitor

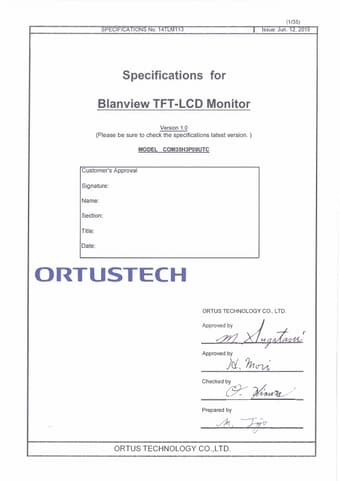

SPECIFICATIONS No.

14TLM113 (1/35) 1 lssue: Jun.

12,2015 Specifications for Blanview TFT-LCD Monitor Version 1.0 (Please be sure to check the specifications latest version.

) MODEL COM35H3P09UTC Customer's Approval Signature: Name: Section: Title: Date: ORTUSTECH ORTUS TECHNOLOGY CO., LTD.

Approved by azzK !_'i f Approved by )cll

SPECIFICATIONS No.

14TLM113 Version History Ver.

Date Page 1.0 Jun.

12, 2015 - - Firs

COM35H3P09UTC Features

* of the Product 2.2 Display Method 3. Dimensions and Shape 3.1 Dimensions 3.2 Outward Form 3.3 Serial № print (S-print) 4. Pin Assignment 5. Block Diagram 6. Absolute Maximum Rating 7. Recommended Operating Conditions 8. Characteristics 8.1 DC Characteristics 8.2 AC Characteristics 8.3 Input Timing C
