AFY1024600A0-7.0INTH-R Datasheet (ORIENT DISPLAY)

AFY1024600A0-7.0INTH-R, LCD

of 25PIN in page 8 Orient Display (N.A.) Ltd.

220 Royal Crest Court,Unit 06,Markham,ON,Canada L3R 9Y2 Tel: 905-477-1166 Fax: 905-477-1782 Orient Display (USA) Corp.

14925 SE Allen Road, Suite 203 B, Bellevue, WA 98006 Tel: (425)698-1938 Fax: (425)698-1852 CONTENTS 1.

GENERAL INFORMATION 4 2.

ABS

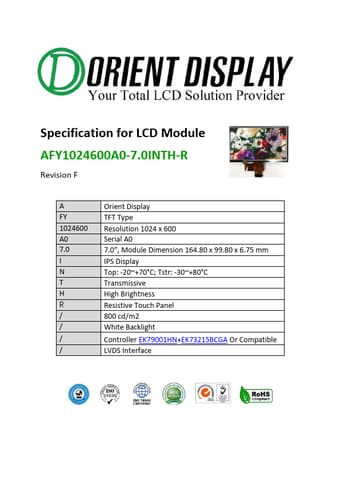

Specification for LCD Module AFY1024600A0-7.0INTH-R Revision F A FY 1024600 A0 7.0 I N T H R / / / / Orient Display TFT Type Resolution 1024 x 600 Serial A0 7.0”, Module Dimension 164.80 x 99.80 x 6.75 mm IPS Display Top: -20~+70°C; Tstr: -30~+80°C Transmissive High Brightness Resistive Touch Panel 800 cd/m2 White Backlight Controller EK79001HN+EK73215BCGA Or Compatible LVDS Interface Rev No.

Rev date REVISION RECORD Contents Remarks O 2019-11-28 First release Preliminary A 2020.2.12 C
