NCV8502 - LDO Linear Regulators

Key Features

Output Voltage Options: Adjustable, 2.5 V, 3.3 V, 5.0 V, 8.0 V, 10 V.
±2.0% Output.
Low 90 mA Quiescent Current.
Fixed or Adjustable Output Voltage.
Active RESET.
Adjustable Reset.
150 mA Output Current Capability.
Fault Protection.
+60 V Peak Transient Voltage.
15 V Reverse Voltage.
Short Circuit.
Thermal Overload.
Early Warning through FLAG/MON Leads.
NCV Pref.

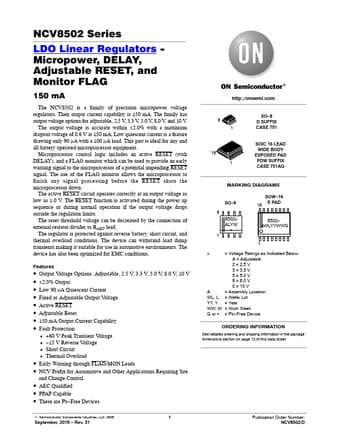

NCV8502 ldo linear regulators by ON - Datasheet Preview

Datasheet Details

Part number	NCV8502
Manufacturer	ON
File Size	182.45 KB
Description	LDO Linear Regulators
Datasheet	NCV8502 Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
NCV8503	LDO Linear Regulators	ON Semiconductor
NCV8504	LDO Linear Regulators	ON Semiconductor
NCV8505	LDO Linear Regulators	ON Semiconductor
NCV8506	LDO Linear Regulators	ON Semiconductor
NCV8508	250mA LDO	ON Semiconductor

Other Datasheets by ON

Part Number	Description
NCV8501	LDO Linear Regulators
NCV8184	Tracking Regulator/Line Driver
NCV2902	Single Supply Quad Operational Amplifiers
NCV4279	5.0V Micropower 150mA LDO Linear Regulator
NCV551	Low-Dropout Voltage Regulator

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

NCV8502 Series LDO Linear Regulators Micropower, DELAY, Adjustable RESET, and Monitor FLAG 150 mA The NCV8502 is a family of precision micropower voltage regulators. Their output current capability is 150 mA. The family has output voltage options for adjustable, 2.5 V, 3.3 V, 5.0 V, 8.0 V, and 10 V. The output voltage is accurate within ±2.0% with a maximum dropout voltage of 0.6 V at 150 mA. Low quiescent current is a feature drawing only 90 mA with a 100 mA load. This part is ideal for any and all battery operated microprocessor equipment. Microprocessor control logic includes an active RESET (with DELAY), and a FLAG monitor which can be used to provide an early warning signal to the microprocessor of a potential impending RESET signal.
