MJH11021 - Complementary Darlington Silicon Power Transistors

The MJH11021 by ON is a Complementary Darlington Silicon Power Transistors. Below is the official datasheet preview.

Datasheet Details

Part number	MJH11021
Manufacturer	ON
File Size	86.06 KB
Description	Complementary Darlington Silicon Power Transistors
Datasheet	MJH11021_ONSemiconductor.pdf

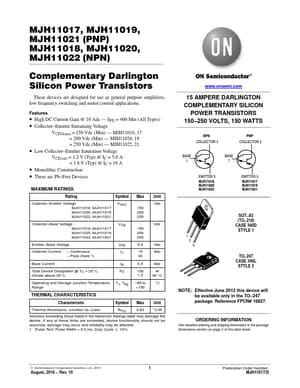

Additional preview pages of the MJH11021 datasheet.

High DC Current Gain @ 10 Adc.
hFE = 400 Min (All Types).
Collector.
Emitter Sustaining Voltage VCEO(sus) = 150 Vdc (Min).
MJH11018, 17 = 200 Vdc (Min).
MJH11020, 19 = 250 Vdc (Min).
MJH11022, 21.
Low Collector.
Emitter Saturation Voltage VCE(sat) = 1.2 V (Typ) @ IC = 5.0 A = 1.8 V (Typ) @ IC = 10 A.
Monolithic Construction.
These are Pb.
Free Devices.
