MCR72-6 - Sensitive Gate Silicon Controlled Rectifier

The MCR72-6 by ON is a Sensitive Gate Silicon Controlled Rectifier. Below is the official datasheet preview.

Datasheet Details

Part number	MCR72-6
Manufacturer	ON
File Size	120.31 KB
Description	Sensitive Gate Silicon Controlled Rectifier
Datasheet	MCR72-6_ONSemiconductor.pdf

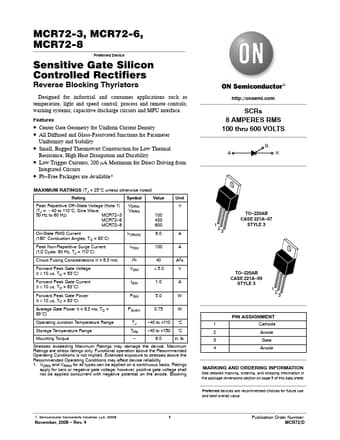

Additional preview pages of the MCR72-6 datasheet.

Center Gate Geometry for Uniform Current Density.
All Diffused and Glass-Passivated Junctions for Parameter Uniformity and Stability.
Small, Rugged Thermowatt Construction for Low Thermal Resistance, High Heat Dissipation and Durability.
Low Trigger Currents, 200 mA Maximum for Direct Driving from Integrated Circuits.
Pb.
Free Packages are Available.
