UG4SC075005L8S - SiC Combo JFET

ON Semiconductor

The UG4SC075005L8S by ON Semiconductor is a SiC Combo JFET. Below is the official datasheet preview.

📥 Download Datasheet

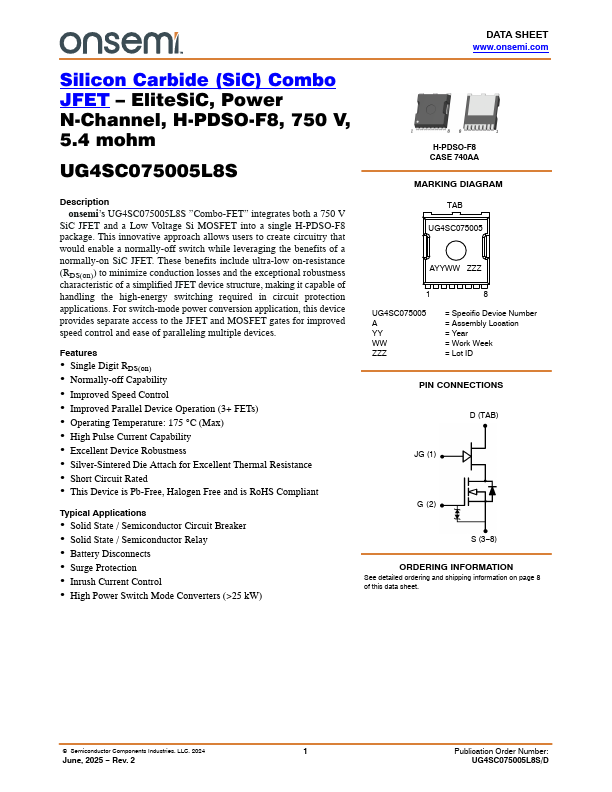

UG4SC075005L8S SiC Combo JFET by ON Semiconductor - Datasheet Preview — Official preview page of the **UG4SC075005L8S** SiC Combo JFET datasheet (ON Semiconductor).

Datasheet Details

Part number	UG4SC075005L8S
Manufacturer	ON Semiconductor
File Size	709.46 KB
Description	SiC Combo JFET
Datasheet	UG4SC075005L8S-ONSemiconductor.pdf

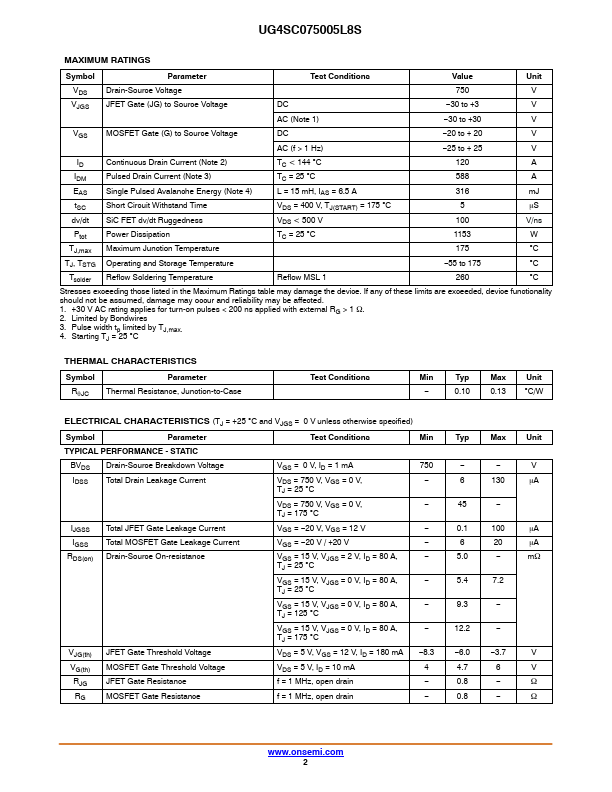

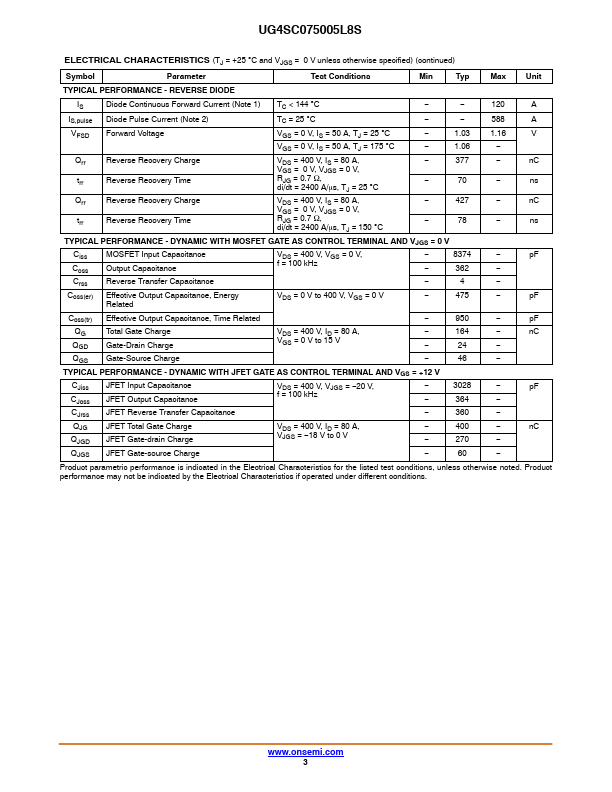

Additional preview pages of the UG4SC075005L8S datasheet.

UG4SC075005L8S Product details

Description

onsemi’s UG4SC075005L8S "Combo-FET" integrates both a 750 V SiC JFET and a Low Voltage Si MOSFET into a single H-PDSO-F8 package.This innovative approach allows users to create circuitry that would enable a normally-off switch while leveraging the benefits of a normally-on SiC JFET.These benefits include ultra-low on-resistance (RDS(on)) to minimize conduction losses and the exceptional robustness characteristic of a simplified JFET device structure, making it capable of handling the high-ener

Features

Single Digit RDS(on).
Normally-off Capability.
Improved Speed Control.
Improved Parallel Device Operation (3+ FETs).
Operating Temperature: 175 C (Max).
High Pulse Current Capability.
Excellent Device Robustness.
Silver-Sintered Die Attach for Excellent Thermal Resistance.
Short Circuit Rated.
This Device is Pb-Free, Halogen Free and is RoHS Compliant Typical.
