SURS8340T3G - Surface Mount Ultrafast Power Rectifiers

Download the SURS8340T3G datasheet PDF. This datasheet also covers the SURS8320T3G variant, as both devices belong to the same surface mount ultrafast power rectifiers family and are provided as variant models within a single manufacturer datasheet.

Features

  • Small Compact Surface Mountable Package with J.
  • Bend Leads.
  • Rectangular Package for Automated Handling.
  • High Temperature Glass Passivated Junction.
  • Low Forward Voltage Drop (0.71 to 1.05 Volts Max @ 3.0 A, TJ = 150°C).
  • SURS8 Prefix for Automotive and Other.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (SURS8320T3G-ONSemiconductor.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number SURS8340T3G
Manufacturer onsemi
File Size 176.06 KB
Description Surface Mount Ultrafast Power Rectifiers
Datasheet download datasheet SURS8340T3G Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SUR1060 ULTRAFAST RECTIFIER SANGDEST
SUR12060 Ultra Fast Recovery Epitaxial Diodes Sirectifier
SUR1520 Soft Recovery Behaviour Ultra Fast Recovery Epitaxial Diodes SIRECTIFIER
SUR1560 ULTRAFAST RECTIFIER Sangdest Microelectronics
SUR1560 Soft Recovery Behaviour Ultra Fast Recovery Epitaxial Diodes SIRECTIFIER

Other Datasheets by onsemi

Part Number Description
SURS8340 Power Rectifiers
SURS8320 Power Rectifiers
SURS8320T3G Surface Mount Ultrafast Power Rectifiers
SURS8320T3G-VF01 Surface Mount Ultrafast Power Rectifiers
SURS8360 Power Rectifiers

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

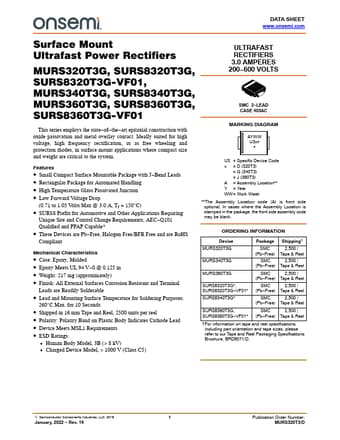

DATA SHEET www.onsemi.com Surface Mount Ultrafast Power Rectifiers MURS320T3G, SURS8320T3G, SURS8320T3G-VF01, MURS340T3G, SURS8340T3G, MURS360T3G, SURS8360T3G, SURS8360T3G-VF01 This series employs the state−of−the−art epitaxial construction with oxide passivation and metal overlay contact. Ideally suited for high voltage, high frequency rectification, or as free wheeling and protection diodes, in surface mount applications where compact size and weight are critical to the system. Features • Small Compact Surface Mountable Package with J−Bend Leads • Rectangular Package for Automated Handling • High Temperature Glass Passivated Junction • Low Forward Voltage Drop (0.71 to 1.05 Volts Max @ 3.
