STK534U342C-E Intelligent Power Module

STK534U342C-E Intelligent Power Module (IPM) 600 V, 5 A Overview This “Inverter IPM” is highly integrated device containing all High Voltage (HV) control from HV-DC to 3-phase outputs in a single SIP module (Single-In line Package). Output stage uses IGBT/FRD technology and implements Under Voltage Protection (UVP). Internal Boost diodes are provided for high side gate boost drive. www.onsemi.com Function Single control power supply due to Internal bootstrap circuit for high side pre-dr.

STK534U342C-E Datasheet (383.56 KB)

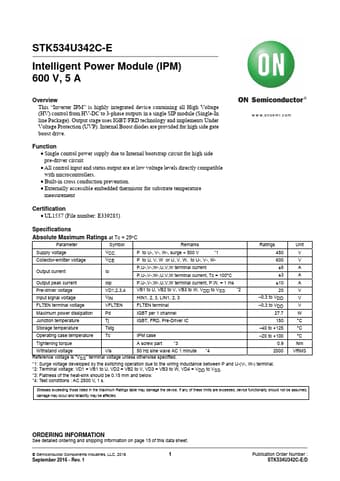

Preview of STK534U342C-E PDF
STK534U342C-E Datasheet Preview Page 2 STK534U342C-E Datasheet Preview Page 3

Datasheet Details

Part number:

STK534U342C-E

Manufacturer:

ON Semiconductor ↗

File Size:

383.56 KB

Description:

Intelligent power module.
