SCH2809 P-Channel Silicon MOSFET

SCH2809 Description

SCH2809 Ordering number : ENA0446 SCH2809 MOSFET : P-Channel Silicon MOSFET SBD : Schottky Barrier Diode General-Purpose Switching Device .

SCH2809 Applications

* Composite type with a P-channel sillicon MOSFET (SCH1305) and a Schottky barrier diode (SBS018) contained in one package facilitating high-density mounting.
* [MOSFET]
* Low ON-resistance.
* Ultrahigh-speed switching.
* 1.8V drive.
* [SBD]

📥 Download Datasheet

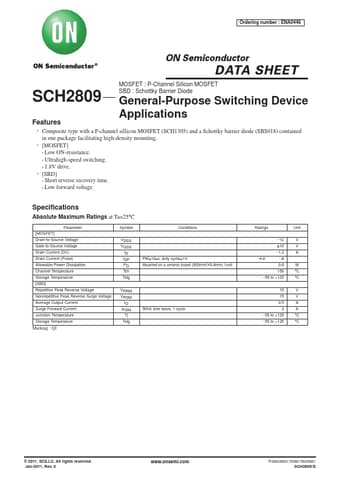

Preview of SCH2809 PDF
