S3N - General-Purpose Rectifiers

Description

SMC Electr

Features

  • Low.
  • Profile Package.
  • Glass.
  • Passivated Junction.
  • UL Flammability Classification: 94V.
  • UL Certified, UL #E258596.
  • These are Pb.
  • Free Devices.

📥 Download Datasheet

Datasheet Details

Part number S3N
Manufacturer onsemi
File Size 150.06 KB
Description General-Purpose Rectifiers
Datasheet download datasheet S3N Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
S3N General-Purpose Rectifiers Fairchild Semiconductor

Other Datasheets by onsemi

Part Number Description

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

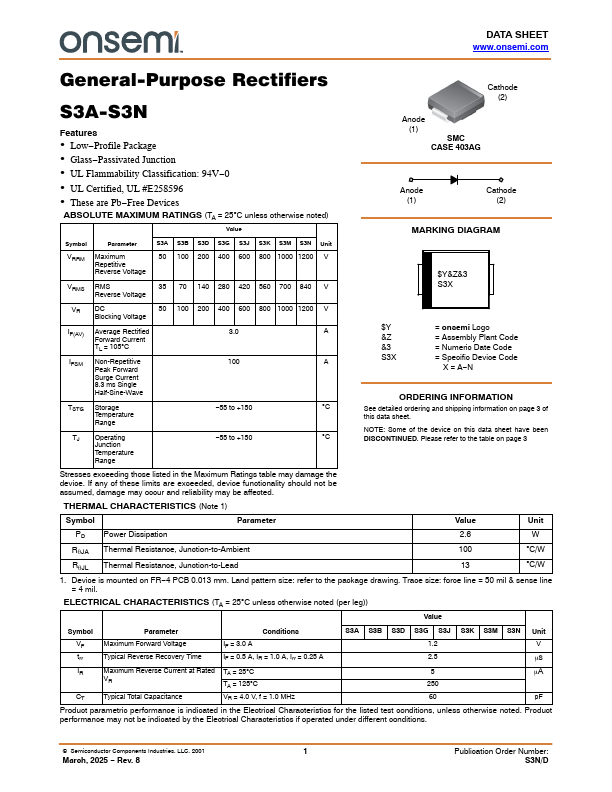

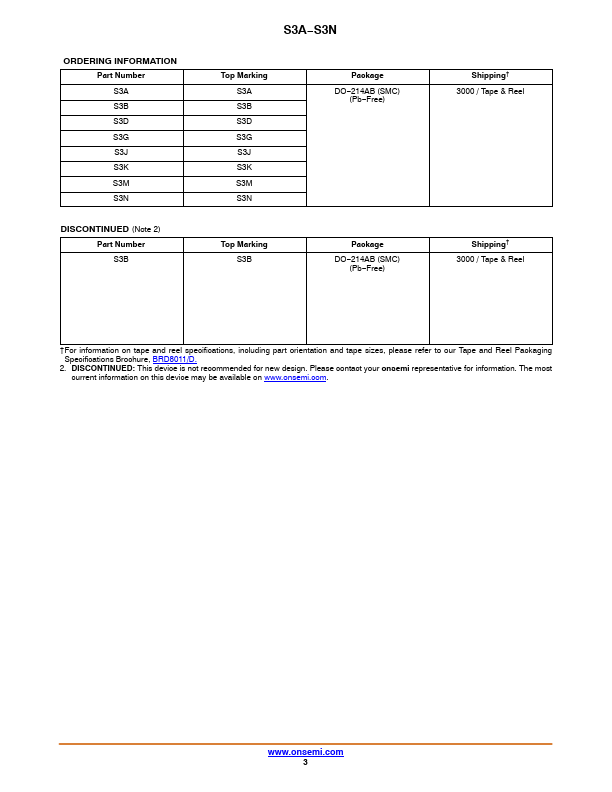

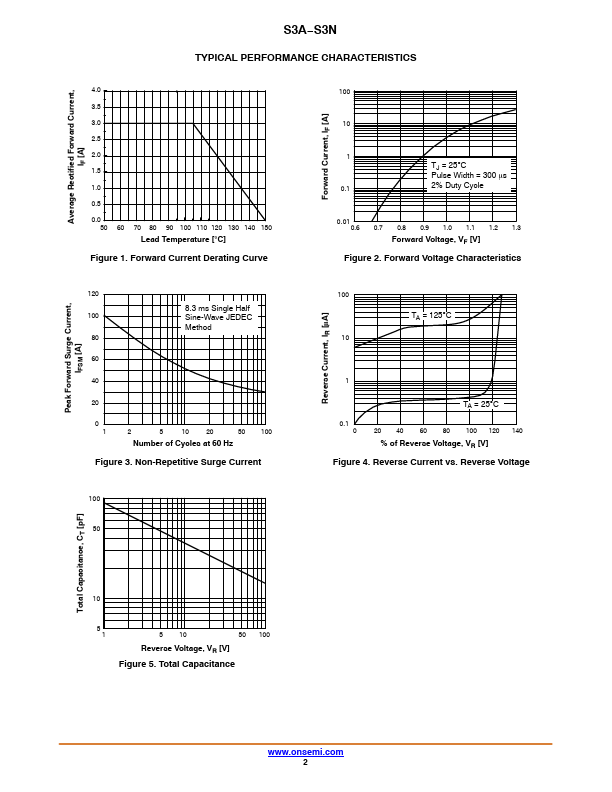

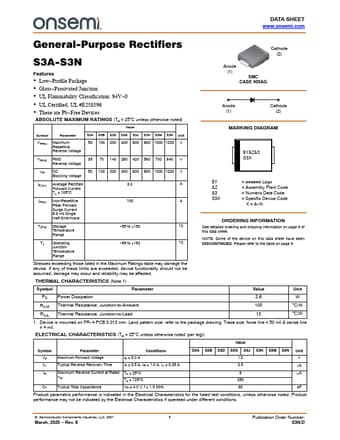

DATA SHEET www.onsemi.com General-Purpose Rectifiers S3A-S3N Features  Low−Profile Package  Glass−Passivated Junction  UL Flammability Classification: 94V−0  UL Certified, UL #E258596  These are Pb−Free Devices ABSOLUTE MAXIMUM RATINGS (TA = 25C unless otherwise noted) Value Symbol Parameter S3A S3B S3D S3G S3J S3K S3M S3N Unit VRRM Maximum Repetitive Reverse Voltage 50 100 200 400 600 800 1000 1200 V VRMS RMS 35 70 140 280 420 560 700 840 V Reverse Voltage Cathode (2) Anode (1) SMC CASE 403AG Anode (1) Cathode (2) MARKING DIAGRAM $Y&Z&3 S3X VR IF(AV) IFSM TSTG TJ DC 50 Blocking Voltage Average Rectified Forward Current TL = 105C Non-Repetitive Peak Forward Surge Current 8.
