PACUSBU - Upstream USB Port Terminator

ON Semiconductor

📥 Download Datasheet

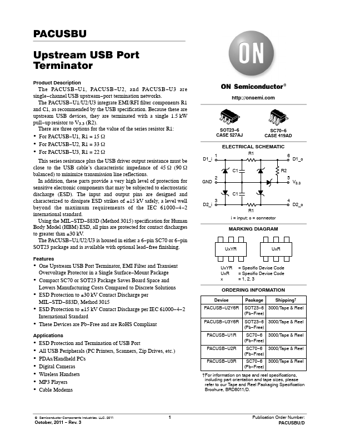

PACUSBU Datasheet Preview — Preview of PACUSBU PDF

Datasheet Details

Part number	PACUSBU
Manufacturer	ON Semiconductor
File Size	108.48 KB
Description	Upstream USB Port Terminator
Datasheet	PACUSBU-ONSemiconductor.pdf

PACUSBU Product details

Description

The PACUSB U1, PACUSB U2, and PACUSB U3 are single channel USB upstream port termination networks. U1/U2/U3 integrate EMI/RFI filter components R1 and C1, as recommended by the USB specification.Because these are upstream USB devices, they are terminated with a single 1.5 kW pull up resistor to V3.3 (R2). For PACUSB U1, R1 = 15 W For PACUSB

Features

One Upstream USB Port Terminator, EMI Filter and Transient Overvoltage Protector in a Single Surface.
Mount Package.
Compact SC70 or SOT23 Package Saves Board Space and Lowers Manufacturing Costs Compared to Discrete Solutions.
ESD Protection to 30 kV Contact Discharge per MIL.
STD.
883D, Method 3015.
ESD Protection to 15 kV Contact Discharge per IEC 61000.
4.
2 International Standard.
These Devices are Pb.
Free and are RoHS C.
