P3P623S05B, P3P623S05A Datasheet - ON Semiconductor

P3P623S05B Timing-Safe Peak EMI Reduction IC

P3P623S05/09 is a versatile, 3.3V Zero-delay buffer designed to distribute Timing-Safe™ clocks with Peak EMI reduction. P3P623S05 is an eight-pin version, accepts one reference input and drives out five low-skew Timing-Safe™ clocks. P3P623S09 accepts one reference input and drives out nine low-skew .

P3P623S05B Features

* Clock distribution with Timing-Safe™ Peak EMI Reduction

* Input frequency range: 20MHz - 50MHz

* Multiple low skew Timing-safe™ Outputs: P3P623S05: 5 Outputs P3P623S09: 9 Outputs

* Supply Voltage: 3.3V±0.3V

* Packaging Information: P3P623S05: 8 pin TSSOP P3P

P3P623S05A_ONSemiconductor.pdf

This datasheet PDF includes multiple part numbers: P3P623S05B, P3P623S05A. Please refer to the document for exact specifications by model.

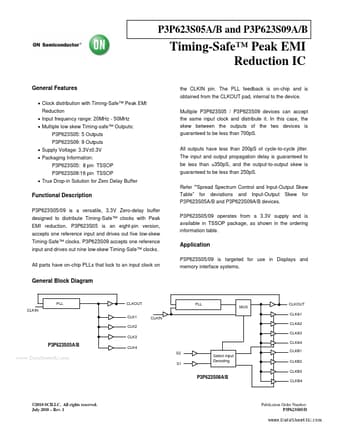

P3P623S05B Datasheet Preview Page 2 P3P623S05B Datasheet Preview Page 3

Datasheet Details

Part number:

P3P623S05B, P3P623S05A

Manufacturer:

ON Semiconductor ↗

File Size:

224.24 KB

Description:

Timing-safe peak emi reduction ic.

Note:

This datasheet PDF includes multiple part numbers: P3P623S05B, P3P623S05A.
Please refer to the document for exact specifications by model.
