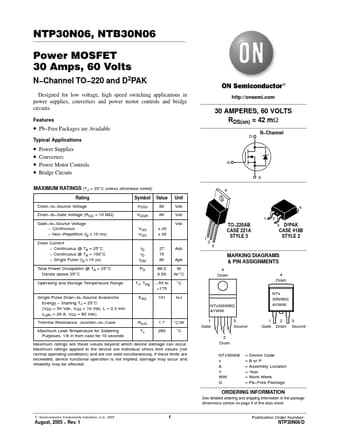

NTP30N06, NTB30N06
Power MOSFET 30 Amps, 60 Volts
N−Channel TO−220 and D2PAK
Designed for low voltage, high speed switching applications in power supplies, converters and power motor controls and bridge circuits.
Features
• Pb−Free Packages are Available
Typical Applications
• Power Supplies • Converters • Power Motor Controls • Bridge Circuits
MAXIMUM RATINGS (TJ = 25°C unless otherwise noted)
Rating
Symbol Value Unit
Drain−to−Source Voltage
Drain−to−Gate Voltage (RGS = 10 MW)
Gate−to−Source Voltage − Continuous − Non−Repetitive (tpv10 ms)
Drain Current − Continuous @ TA = 25°C − Continuous @ TA = 100°C − Single Pulse (tpv10 ms)
Total Power Dissipation @ TA = 25°C Derate above 25°C
VDSS
60
Vdc
VDGR
60
Vdc
Vdc
VGS
"20
VGS
"30
ID
27 Adc
ID
15
IDM
80 Apk
PD
88.2 W
0.
