NS2029M3 - PNP Silicon General Purpose Amplifier Transistor

Product Overview

ON Semiconductor

📥 Download Datasheet

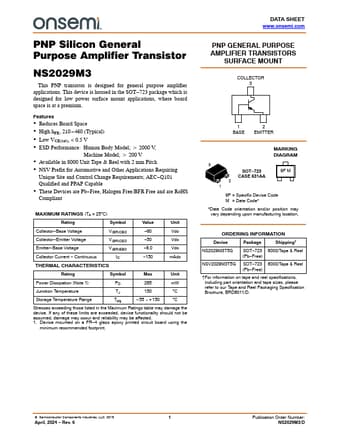

NS2029M3 PNP Silicon General Purpose Amplifier Transistor by ON Semiconductor - Datasheet Preview — Datasheet preview – NS2029M3

Datasheet Details

Part number	NS2029M3
Manufacturer	ON Semiconductor
File Size	184.53 KB
Description	PNP Silicon General Purpose Amplifier Transistor
Datasheet	NS2029M3 Datasheet
Additional preview pages of the NS2029M3 datasheet.

Product details

Features

Reduces Board Space.
High hFE, 210.
460 (Typical).
Low VCE(sat), < 0.5 V.
ESD Performance: Human Body Model; u 2000 V, Machine Model; u 200 V.
Available in 8000 Unit Tape & Reel with 2 mm Pitch.
NSV Prefix for Automotive and Other.
