NRVHPM260T3G - Surface Mount Ultra Fast Power Rectifier

Product Overview

ON Semiconductor

📥 Download Datasheet

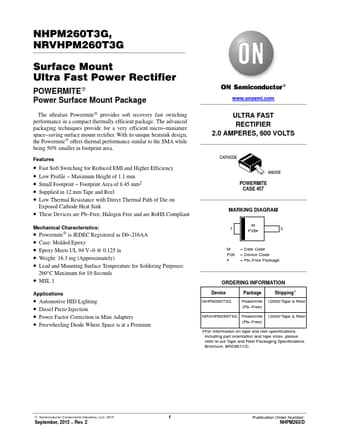

NRVHPM260T3G Surface Mount Ultra Fast Power Rectifier by ON Semiconductor - Datasheet Preview — Datasheet preview – NRVHPM260T3G

Datasheet Details

Part number	NRVHPM260T3G
Manufacturer	ON Semiconductor
File Size	64.81 KB
Description	Surface Mount Ultra Fast Power Rectifier
Datasheet	NRVHPM260T3G Datasheet
Additional preview pages of the NRVHPM260T3G datasheet.

Product details

Features

Fast Soft Switching for Reduced EMI and Higher Efficiency.
Low Profile.
Maximum Height of 1.1 mm.
Small Footprint.
Footprint Area of 8.45 mm2.
Supplied in 12 mm Tape and Reel.
Low Thermal Resistance with Direct Thermal Path of Die on Exposed Cathode Heat Sink.
These Devices are Pb.
Free, Halogen Free and are RoHS Compliant Mechanical Characteristics:.
Powermite® is JEDEC Registered as D0.
216AA.
