NOIV1SN025KA - VITA 25K Image Sensor

ON Semiconductor

📥 Download Datasheet

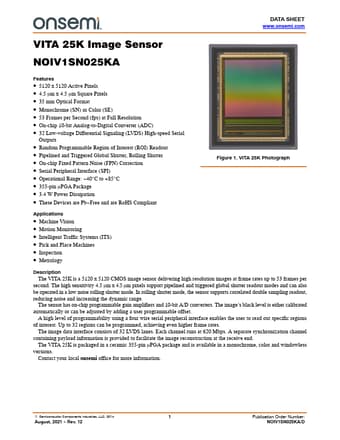

NOIV1SN025KA Datasheet Preview — Preview of NOIV1SN025KA PDF

Datasheet Details

Part number	NOIV1SN025KA
Manufacturer	ON Semiconductor
File Size	1.19 MB
Description	VITA 25K Image Sensor
Datasheet	NOIV1SN025KA-ONSemiconductor.pdf

NOIV1SN025KA Product details

Description

The VITA 25K is a 5120 x 5120 CMOS image sensor delivering high resolution images at frame rates up to 53 frames per second.The high sensitivity 4.5 mm x 4.5 mm pixels support pipelined and triggered global shutter readout modes and can also be operated in a low noise rolling shutter mode.In rolling shutter mode, the sensor supports correlated double sampling readout, reducing noise and increasing the dynamic range.The sensor has on-chip programmable gain amplifiers and 10-bit A/D converters.

Features

5120 x 5120 Active Pixels.
4.5 mm x 4.5 mm Square Pixels.
35 mm Optical Format.
Monochrome (SN) or Color (SE).
53 Frames per Second (fps) at Full Resolution.
On-chip 10-bit Analog-to-Digital Converter (ADC).
32 Low-voltage Differential Signaling (LVDS) High-speed Serial Outputs.
Random Programmable Region of Interest (ROI) Readout.
Pipelined and Triggered Global Shutter, Rolling Shutter.
On-chip Fixed Patt.
