NOIP1SN1300A - PYTHON 1.3/0.5/0.3 MegaPixels Global Shutter CMOS Image Sensors

Product Overview

ON Semiconductor

Datasheet Details

Part number	NOIP1SN1300A
Manufacturer	ON Semiconductor
File Size	958.56 KB
Description	PYTHON 1.3/0.5/0.3 MegaPixels Global Shutter CMOS Image Sensors
Datasheet	NOIP1SN1300A Datasheet

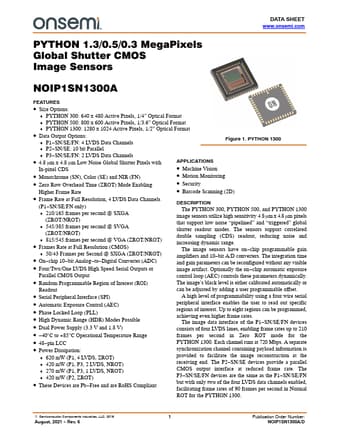

Additional preview pages of the NOIP1SN1300A datasheet.

Product details

Description

The PYTHON 300, PYTHON 500, and PYTHON 1300 image sensors utilize high sensitivity 4.8 mm x 4.8 mm pixels that support low noise “pipelined” and “triggered” global shutter readout modes.The sensors support correlated double sampling (CDS) readout, reducing noise and increasing dynamic range.The image sensors have on chip programmable gain amplifiers and 10 bit A/D converters.

Features

Size Options:.
PYTHON 300: 640 x 480 Active Pixels, 1/4” Optical Format.
PYTHON 500: 800 x 600 Active Pixels, 1/3.6” Optical Format.
PYTHON 1300: 1280 x 1024 Active Pixels, 1/2” Optical Format.
Data Output Options:.
P1.
SN/SE/FN: 4 LVDS Data Channels Figure 1. PYTHON 1300.
P2.
SN/SE: 10 bit Parallel.
P3.
SN/SE/FN: 2 LVDS Data Channels.
4.8 mm x 4.8 mm Low Noise Global Shutter Pixels wi.
