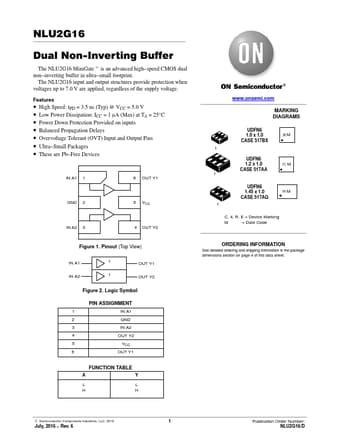

NLU2G16 - Dual Non-Inverting Buffer

ON Semiconductor

Datasheet Details

High Speed: tPD = 3.5 ns (Typ) @ VCC = 5.0 V.
Low Power Dissipation: ICC = 1 mA (Max) at TA = 25°C.
Power Down Protection Provided on inputs.
Balanced Propagation Delays.
Overvoltage Tolerant (OVT) Input and Output Pins.
Ultra.
Small Packages.
These are Pb.
Free Devices IN A1 1 6 OUT Y1 GND 2 5 VCC IN A2 3 4 OUT Y2 Figure 1. Pinout (Top View) IN A1 1 OUT Y1 IN A2 1 OUT Y2 Figure 2. Logic Symbol PIN.
