NLSV4T240 - 4-Bit Dual-Supply Non-Inverting Level Translator

NLSV4T240 Description

NLSV4T240 4-Bit Dual-Supply Inverting Level Translator The NLSV4T240 is a 4-bit configurable dual-supply voltage level translator.The input An and ou.

NLSV4T240 Features

* http://onsemi. com MARKING DIAGRAM 1 UQFN12 MU SUFFIX CASE 523AE WBM G
* ăWide VCCA and VCCB Operating Range: 0.9 V to 4.5 V
* ăHigh-Speed w/ Balanced Propagation Delay
* ăInputs and Outputs have OVT Protection to 4.5 V
* ăNon-preferential VCCA and VCCB Sequencing

NLSV4T240 Applications

* WB = Specific Device Code M = Date Code G = Pb-Free Package PIN ASSIGNMENT OE VCCA A1 A2 A3 A4 1 2 3 4 5 6 12 11 10 9 8 7
* ăMobile Phones, PDAs, Other Portable Devices Important Information VCCB B1 B2 B3 B4
* ăESD Protection for All Pins: HBM (Human Body Model) > 6000 V VCCA A1 V

📥 Download Datasheet

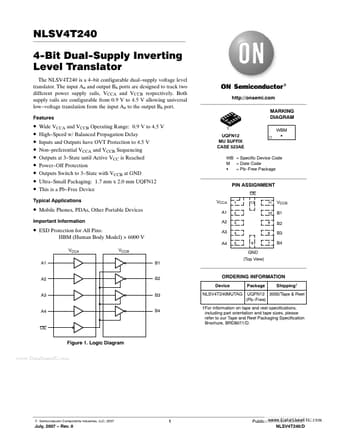

Preview of NLSV4T240 PDF
